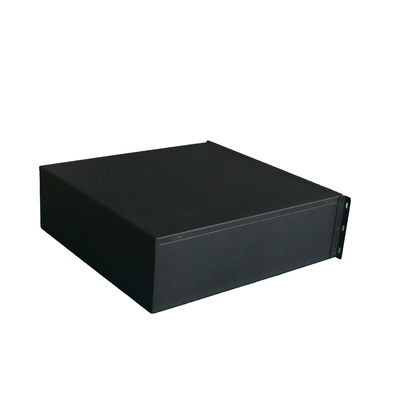

TINKO Rack Mounted Lifepo4 Battery
Our Product Introduction
for more products please visit us on tinkopower.com
Basic Information
Place of Origin:
China
Brand Name:
TINKO
Certification:
CE, ROHS,MSDS,UN38.3
Model Number:
TK-3U
Minimum Order Quantity:
1PC
Packaging Details:
1pc/paper carton, Size: 725*555*268mm
Payment Terms:
T/T, L/C,paypal
Supply Ability:
100pcs/day
Product Specification
Material:
Steel
Color:
Black
Battery:
Lifepo4
Voltage:
48
Capacity:
100AH
Cycle Life:
6000
Highlight:
TINKO rack mount lifepo4 battery
,6000 Cycle 48v 100ah lifepo4 battery pack
,5.12KWH home power battery storage

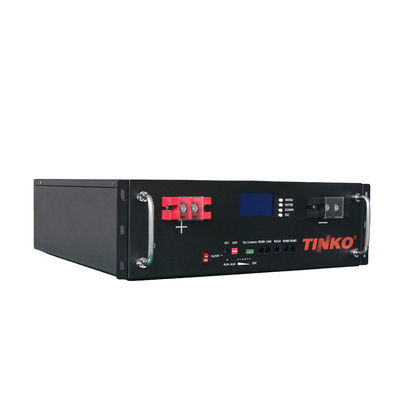

More Images
Our Product Introduction
for more products please visit us on tinkopower.com
Product Description
Rechargeable Lifepo4 battery pack 48v 100Ah for solar battery storage system
PRODUCTION FEATURES:
- Support a variety of communication protocols
- Easy to install and expand
- Cycle life up to 6000times
- Intelligent BMS system
- Warranty for 5 years
BATTERY SPECIFICATIONS
|
|
No.
|
Item
|
General Parameter
|
Remark
|
|
| 1 |
Combination method
|
16S1P | |||
|
2 |
Rated Capacity |
Typical
|
100Ah |
Standard discharge after Standard charge(for the whole battery pack) |
|
|
Minimum
|
100Ah | ||||
| 3 |
Factory Voltage
|
51V-53V(40-60%) |
Operation Voltage
|
||
|
4 |
Voltage at end of Discharge
|
40-44V |
Discharge Cut-off Voltage
|
||
| 5 |
Charging Voltage
|
56-58V | |||
|
6 |
Internal Impedance
|
|
Internal resistance measured at AC 1KHZ after 50% charge
Should use those battery which finished within 1week after shipment and cycles less than 5times to do the measurement
|
||
|
7 |
Standard charge
|
Constant Current 20A Constant Voltage see No.5 0.02CA cut-off
|
|
||
|
Limiting current
|
80A | ||||
|
8 |
Standard discharge
|
Constant current:20A end voltage see NO.4 | |||
|
9 |
Maximum Continuous Charge Current
|
100A |
≥10ºC |
||
|
10 |
Maximum Continuous Discharge Current
|
100A1010*568*63.5(79) |
≥10ºC | ||
|
11 |
Operation Temperature Range
|
Charge : 0~55℃ |
60±25%R.H. Bare Cell
|
||
| Discharge : -20~60℃ | |||||
|
12 |
|
less than 12 months :- 10~35℃
|
|
||
|
less than 3 months: - 10~45℃
|
|||||
|
less than 7 day : -20~65℃
|
|||||
| 13 |
Dimensions
|
530*465*155mm | Include Bracket | ||
| 14 |
Weight
|
Approx :47kg | |||

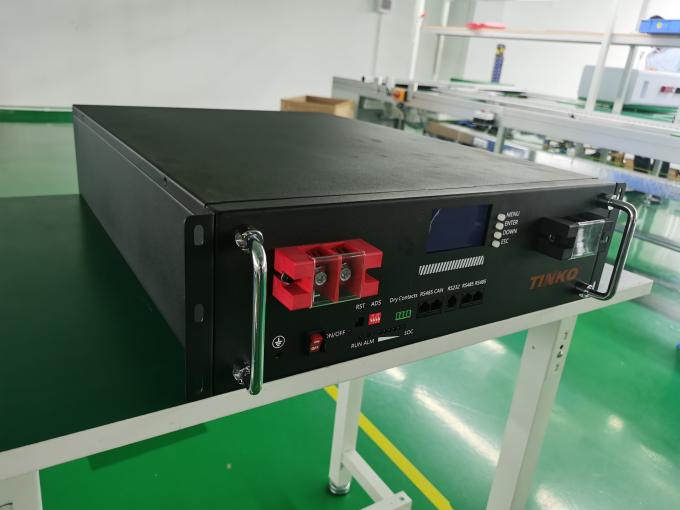

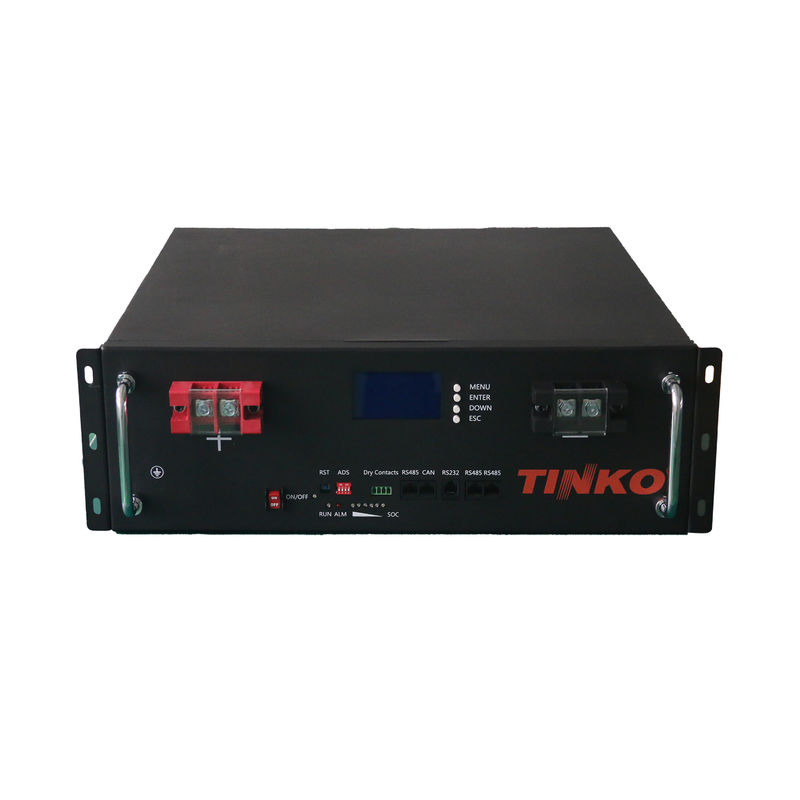

PIC DISPALY
