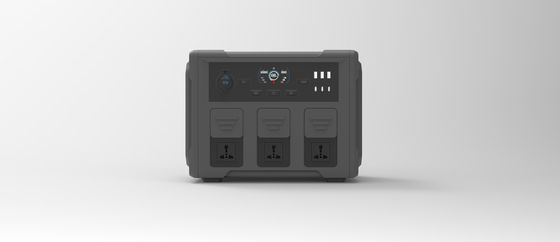

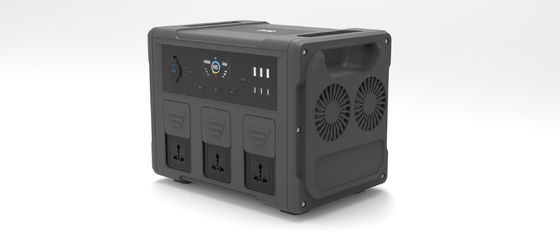

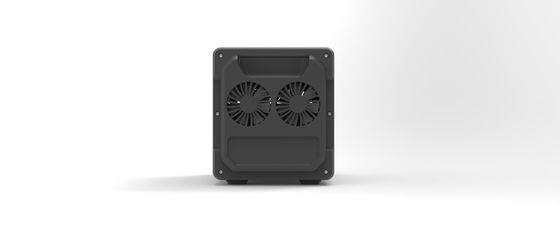

Compact And 1041wh Portable Power Station With Inverter AC Output And Fast Charging

Compact And 1041wh Portable Power Station With Inverter AC Output And Fast Charging

Brand Name: TINKO/OEM
Model Number: KTBX- K6
MOQ: 10PC
Price: Negotiable
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Certification:
CE/ROHS/MSDS/UN38.3
Battery Type:
Lifepo4
Voltage:
AC 110V / 220V , USB DC 11-50V
Power:
1041wh
Weight:
15.14kg
Size:
366*235*266mm
Cycle Life:
>4000
Input:
AC1000W DC 101-50 400W
Origin:
Dongguan, China
Packaging Details:
1pc/parer carton
Supply Ability:
100pcs/day
Highlight:

Compact portable power station with inverter

,

1041wh portable power station with inverter

,

1041wh solar portable power station

Product Description

Multi-Functional 1041wh Portable Power Station with Inverter AC Output and Fast Charging



Product Features

  • Small, lightweight, and portable
  • Support three charging methods: mains, photovoltaic, and vehicle charging
  • Various voltage outputs such as AC 220V, DC 5V, 9V, 12V, etc
  • High performance, high safety, and high power 32700 lithium iron phosphate battery cells
  • Under voltage, over current, over temperature, short circuit, over charge, over discharge and other system protection functions
  • Use large LCD screen to display power and function indicatio
  • Supports QC3.0 quick charge and Type-C quick charge PD30W
  • 0.3S fast start; High efficiency
  • 1500W constant power output



Product Description

The product defined here is a Chinese standard 100V portable mobile power supply, which integrates multiple functional modes of portable energy storage power supply system. The product is equipped with a high-efficiency 33140 lithium iron phosphate battery cell, a safe battery BMS management system, and an efficient energy conversion circuit. It can be placed indoors or in a car, and can also be used as an emergency backup power supply for home, office, and outdoor use. Charging can be done with either mains or solar power, without the need for an external adapter. The product can be directly connected to the mains power supply, with a charging capacity of over 98% in 1.6 hours, achieving true fast charging. This product system can provide a rated 100V 1200W AC output, and is equipped with 5V, 12V, 15V, 20V DC output and 15W wireless charging output to meet the needs of different scenarios. At the same time, it is equipped with an advanced power management system to ensure the long life and safe use of the battery.





Product Parameters(Battery)



NO. Item performance



Remark



1



cell type



33140

Lithium Iron Phosphate

2



Single cell capacity



15500mAh
3



Battery combination method



3P7S



3 parallel 7 series

4



Rated capacity of battery



325500mAh



Total battery pack capacity

5



Battery rated power



1041Wh
6



Rated voltage of battery



22.4V

标称电压3.2V

Nominal voltage 3.2V

7



Discharge Cut-off Voltage



19V
8

Battery internal resistance

≤10mR



AC test internal resistance

9



Battery operating temperature



-10~60℃
10 Normal temperature cycle life



2000 times, capacity maintained at ≥ 70%



0.5C charging, 1C discharging
