| Brand Name: | TINKO/OEM |
| Model Number: | TKHSI-5500 |
| MOQ: | 20PCS |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |
Product Description

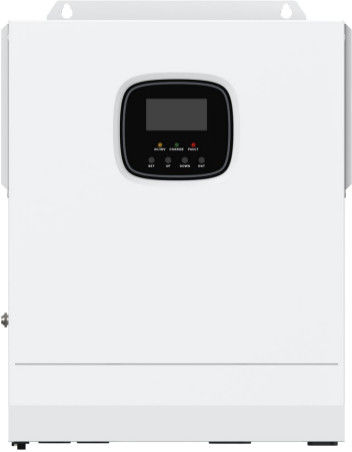

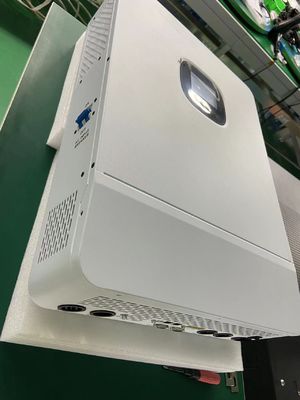

TKHSI-5500 is a new solar storage inverter, which integrates solar energy storage & mains charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrial standard. There are four charge modes namely only solar power, mains power priority, solar power priority, mains power & solar power; inverter and mains outputs are selectable to meet different application needs.
The solar charge module adopts the latest optimized MPPT tracking technology, which can quickly track the maximum power point of the PV array in any environment to obtain the maximum energy of the solar panel in real time with wide voltage range of MPPT.
AC-DC charge module adopts advanced control algorithm to realize full digital double closed-loop control of voltage and current, with high control accuracy and small volume. Battery can be charged and protected stably and reliably with wide AC voltage input range, full input/output protection function.
DC-AC inverter module based on full digital intelligent design adopts advanced SPWM technology, outputs pure sine wave, converts DC into AC. It is suitable for AC loads such as household appliances, electric tools, industrial device, electronic audiovisual, etc. The product adopts the segment LCD display design to display the operation data and state of the system in real time. The comprehensive electronic protection function ensures that safety and stability of the whole system.
Product Technical Parameters
|
AC mode
|
|
| Rated input voltage | 220/230Vac |
| Input voltage range | ( 170Vac~280Vac) ±2% (90Vac-280Vac) ±2% |
| Frequency | 50Hz/ 60Hz (auto-detect) |
|
Frequency range |
47±0.3Hz ~ 55±0.3Hz (50Hz); 57±0.3Hz ~ 65±0.3Hz (60Hz); |
| Overload/short- circuit protection | Breaker |
| Efficiency | >95% |
| Conversion time |
10ms (Typical value) |
| (Bypass and inverting) | |
| AC reverse flowing protection | yes |
| Maximum bypass overload current | 40A |
|
Inverting mode
|
|
| Output voltage waveform | Pure sine wave |
| Rated output power (VA) | 5500 |
| Rated output power (W) | 5500 |
| Power factor | 1 |
| Rated output voltage (Vac) | 230Vac(200/208/220/240Vac Settable) |
| Output voltage error | ±5% |
| Output frequency range (Hz) | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
| Efficiency | >90% |
|
Overload protection |
( 102%<load<125%): Alarm and shutdown after 5 minutes. ( 125%<load<150%): Alarm and shutdown after 10 seconds. Load>150%: Alarm and shutdown after 5 seconds. |
| Peak power | 11000VA |
| Loaded motor capacity | 4HP |
| Output short-circuit protection | Breaker |
| Specification of bypass breaker | 40A |
| Rated battery input voltage | 48V (minimum start voltage 44V) |
| Battery voltage range |
40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm/turnoff voltage/overvoltage alarm/overvoltage restoration…settable LCD screen) |
| Power saving mode | Load ≤50W |
|
AC charge
|
|
| Battery type | Lead acid or lithium battery |
| Maximum charge current | 60A |
| Charge current error | ± 5Adc |
| Charge voltage range | 40 – 60Vdc |
| Short-circuit protection | Breaker and blown fuse |
| Breaker specification | 40A |
| Overcharge protection | Alarm, stop charging after 1 minute |
|
Solar charge
|
|
| Maximum PV open circuit voltage | 500Vdc |
| PV operation voltage range | 120-500Vdc |
| MPPT voltage range | 120-450Vdc |
| Battery voltage range | 40-60Vdc |
| Maximum input power | 6000W |
| Charge current range of solar energy (settable) | 0~ 100A |
| Charge short-circuit protection | Blown fuse |
| Wiring protection | Inverse wiring protection |
|
Certified specifications
|
|
| Certification | CE(IEC62109-1)/CETL(UL1741 C22.2 NO.107.1)/FCC/SAA |
| EMC authentication grade | EN61000 |
| Operation temperature range | -10 °C to 55 °C |
| Storage temperature range | -25 °C ~ 60 °C |
| Humidity range | 5% to 95% (three-proof paint protection) |
| Noise | ≤60dB |
| Thermal dissipation | Forced cooling with adjustable air speed |
| Communication interface | USB/RS485 (WiFi/GPRS)/dry node control |
| Dimension | 426*322* 126mm |
| Weight | 10.5kg |
