| Brand Name: | TINKO/OEM |
| Model Number: | TK18650 3S1P |
| MOQ: | 1000PCS |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

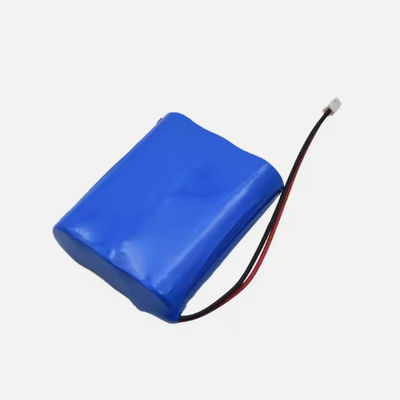

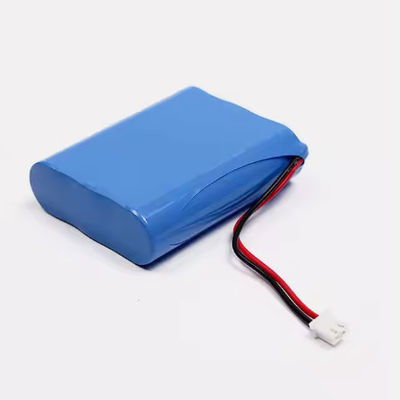

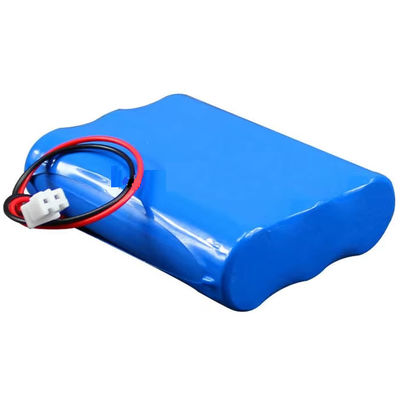

Rechargeable Customized 18650 Lithium-ion Battery Pack 3S1P 2500MAH for Robot
Battery Description
TINKO 11.1V 18650 battrey pack 2500mah assembled with PCM board is a common model which is widely used by customer for their electric product such as fans, toys and lights. Our lithium-ion batteries are widely used because of their advantageous features. They have a high energy-to-weight ratio compares to other types of battery, so they can store more energy in a smaller, lighter package. They also can endure hundreds to thousands of charge and discharge cycles, so their lifespan is also much longer. Their low self-discharge allowed them to retain charge for extended periods when not in use. With these features the lithium battery used in a variety of applications, from consumer electronics (smartphones, laptops) to electric vehicles. Their voltage and capacity also can be designed through different usage.
Battery Parameters
|
NO.
|
Item | Specifications | |||||
| 1 |
Typical Capacity
|
2500mAh @ 0.2C Discharge | |||||
|
Minimum capacity
|
2480mAh @ 0.2C Discharge | ||||||
| 2 |
Nominal voltage
|
11.1V | |||||
| 3 |
Standard Charge
|
CC/CV,0.2C5A,12.6V | |||||
| 4 |
Standard Discharge
|
CC,0.2C5A, 9.00V | |||||
| 5 |
End-of-charge Voltage
|
12.6V±0.1V | |||||
| 6 |
E nd-of-charge Current
|
0.02C5A (At CV mode) | |||||
| 7 |
End-of-discharge Voltage
|
9.00 V | |||||
| 8 |
Charging Time
|
8.0hours(standard charge) | |||||
| 9 |
Quick Charge Current
|
2500mA (1.0C5rate) | |||||
| 10 |
Quick Discharge Current
|
5000mA (2.0C5rate) | |||||
| 11 |
Max Discharge Current
|
7500mA (3.0C5rate) | |||||
| 12 |
Initial Impedance
|
Max: 230mW | |||||
| 13 |
Weight
|
Approx:144±2g | |||||
| 14 |
Operating temperature
|
Charging: 0℃~45℃ Discharging:-20℃~60℃ |
|||||
| 15 |
Storage temperature
|
-5℃~35℃ | |||||
| 16 |
Storage Humidity
|
≤75% RH | |||||
| 17 |
Appearance
|
Without scratch, distortion, contamination and leakage
|
|||||
| 18 |
Standard environmental condition
|
Temperature : 25±2℃ Humidity : 45-75%RH Atmospheric Pressure : 86-106 KPA |
|||||
| 19 |
Temperature Dependence of Discharge Capacity @ 0.2C Discharge
|
||||||
| 25℃ |
-10℃
|
0℃
|
15℃
|
25℃
|
40℃
|
||
|
Relative Capacity
|
50% | 80% | 90% | 100% | 100% | ||
Product Drawing
Product Applications
