| Brand Name: | TINKO/OEM |
| Model Number: | KTQC-72100 |
| MOQ: | 1 PCS |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

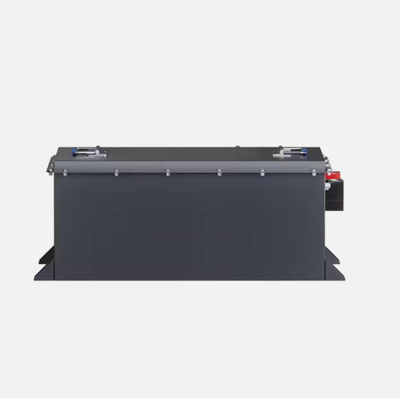

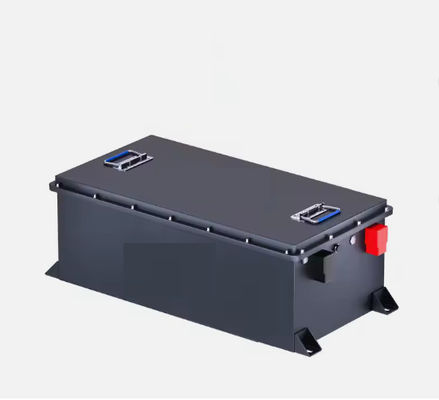

Advanced 76.8V Golf Cart Battery 100AH 7680WH Lithium Battery for Electric Vehicles
Product Description
Lithium iron phosphate batteries known as lifepo4 battery, have become increasingly popular in the marine and electricty industry due to their many advantages compares to traditional lead-acid batteries and even over other lithium-ion batteries.
Lifepo4 batteries have many advantages over traditional lead-acid batteries and other lithium-ion batteries cart applications. They are much safer, have a longer cycle life, higher temperature tolerance, lower self-discharge rate, and higher energy density. Besides, LiFePO4 batteries also have a relatively low cost of ownership, because their lifespan is much longer than the traditional lead acid battery, so the replacement cost will be much lower in the long term. All these factors make Lithium iron phosphate batteries the best choice for various applications such as golf cart, electric forklifts, sightseeing vehicles, pickup trucks, electric boats, yachts, and even ships.
And all of our TINKO product uses brand new grade A LiFePO4 cells to maintain higher energy density, stable performance, and greater power of the battery pack. We are dedicated to provide green power solutions and are one of the leaders in the LiFePO4 battery industry thanks to our top-grade cells and authoritative accreditations.
Product Parameters
| 1 | Nominal voltage | 76.8V |
| 2 | Nominal capacity | 100Ah |
| 3 | Dimensions | 705*310*245mm ( L*W*H ) |
| 4 | Life Cycles | up to 6000 times at 80% DOD |
| 5 | Weight | 60kgs |
| 6 | Type of Battery Cell | Grade A Lifepo4 |
| 7 | Case Meterial | Metal |
| 8 | Charging Ratio | 0.2C |
| 9 | Energy | 7680wh |
| 10 | Charge Cut-off Voltage | 76.8V |
| 11 | Discharge Cut-off Voltage | 60V |
| 12 | Charge mode | CC/CV : Constant Current / Constant Voltage |
| 13 | Continuous charge | Max 100A |
| 14 | Continuous discharge charge | Max 200A |
| 15 | Communications Port | CAN, RS485 |
| 16 | Protection | Built-in Smart BMS |
| 17 | Bluetooth 5.0 | YES, Optional |
| 18 | Certificate | CE, MSDS, UN38.3 |
| 19 | Design Life | 10 years |
| 20 | Protection | IP67 waterproof |
| 21 | Warranty | 5 years |
