| Brand Name: | TINKO/OEM |
| Model Number: | KTQC-480503 |
| MOQ: | 10 PCS |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

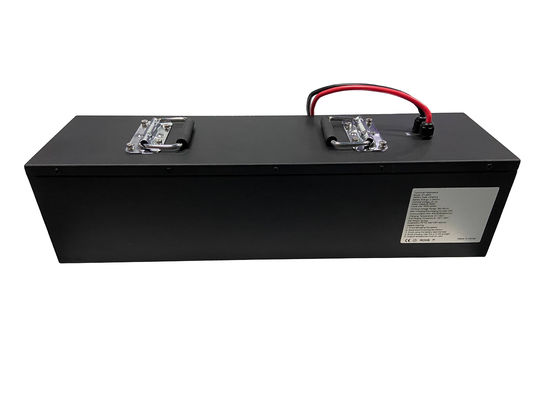

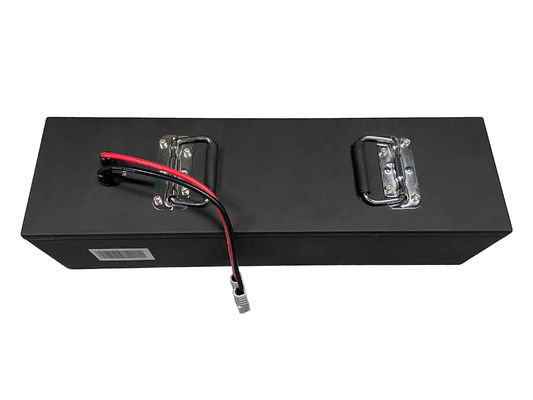

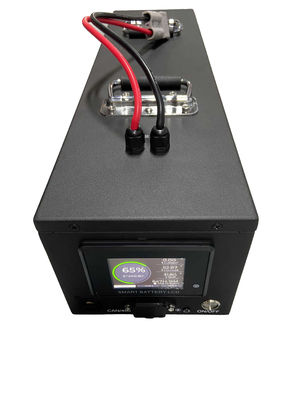

48V 50Ah LiFePO4 Battery for Marine Applications and Long-lasting Electric Carts
Product Description
LiFePO4 battery is also a kind of lithium-ion batteries, but they have some different variations in lithium battery chemistries. Because the lifepo4 batteries use lithium iron phosphate as the cathode material, a graphite carbon electrode as the anode. From smartphones to electric cars, lithium-ion batteries are in almost every gadget we own, these batteries are changing the world. Yet, lithium-ion batteries have a sizable list of drawbacks that makes lithium iron phosphate (LiFePO4) a better choice.
One of the main advantages of lifepo4 batteries is their high energy density. This means that they can store more energy in a relatively small shell, making them the most suitable battery for applications where space is limited. They also have a longer lifespan than traditional lead-acid batteries, it cycle life is about 6000 times. These characteristics make them a popular choice for a wide range of applications, including electric vehicles, solar energy systems, and backup power systems.
Product Parameters
| 1 | Nominal voltage | 48V |
| 2 | Nominal capacity | 50Ah |
| 3 | Dimensions | 550*156*140mm |
| 4 | Life Cycles | up to 6000 times at 80% DOD |
| 5 | Weight | 27kgs |
| 6 | Type of Battery Cell | A Grade Lifepo4 |
| 7 | Case Meterial | Metal shell |
| 8 | Working Voltage | 40V - 54.75V |
| 9 | Charge Voltage | 40V-54.75V |
| 10 | Charge Cut-off Voltage | 54.75V |
| 11 | Charge mode | CC/CV : Constant Current / Constant Voltage |
| 12 | Continuous charge | Max 50A |
| 13 | Continuous discharge charge | Max 100A |
| 14 | Communications Port | CAN, RS485 |
| 15 | Discharge cut-off voltage | 40V |
| 16 | Bluetooth App | YES / Optional |
| 17 | Certificate | CE, MSDS, UN38.3 |
| 18 | Design Life | 10 years |
| 19 | Warranty | 5 years |
