| Brand Name: | TINKO/OEM |
| Model Number: | TK32140 |
| MOQ: | 10PCS |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

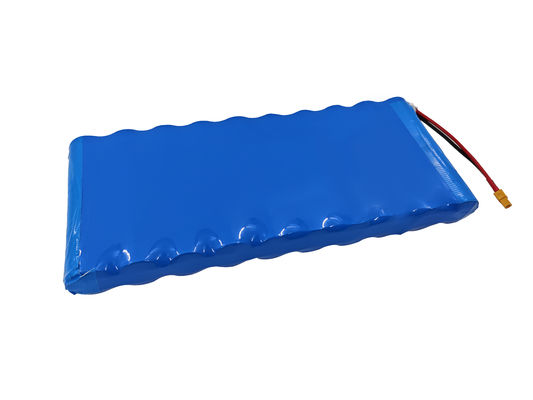

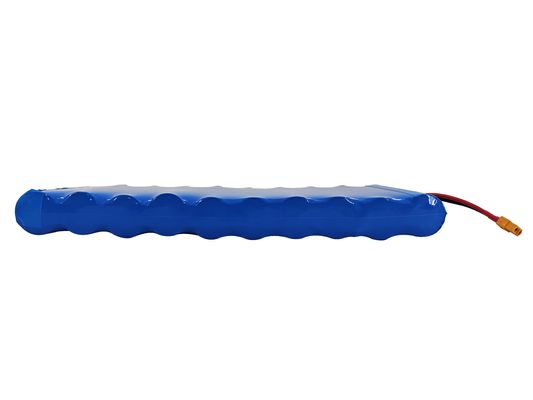

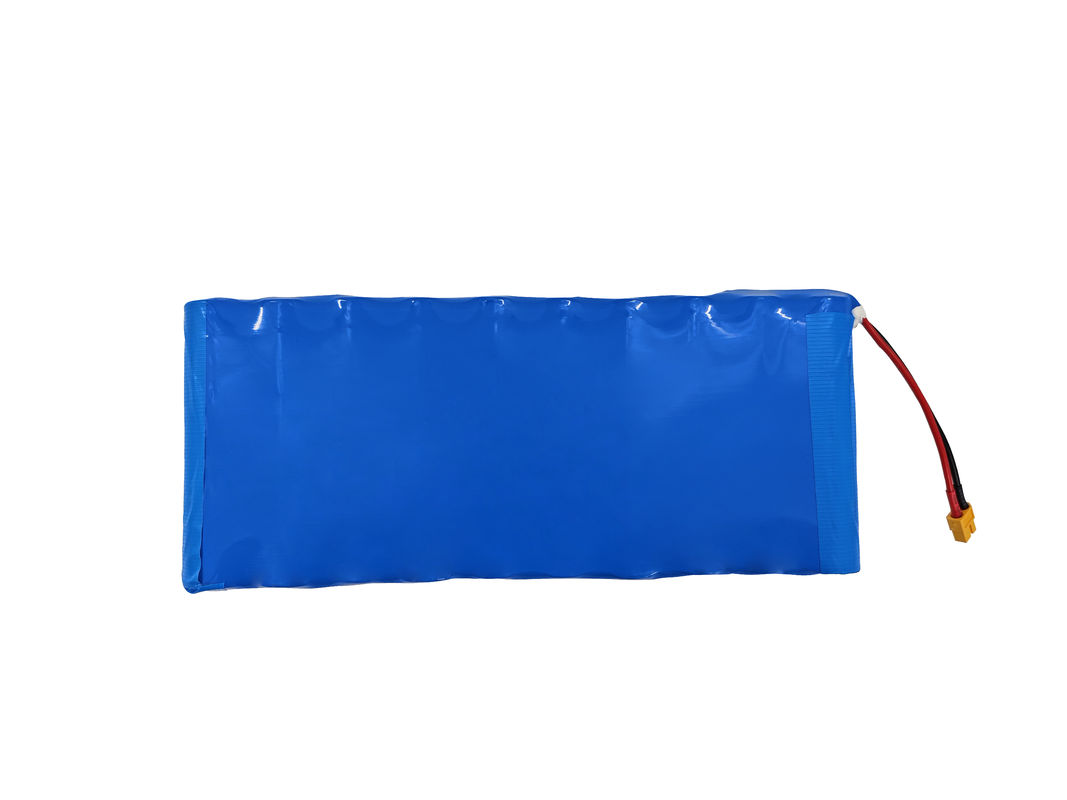

High Quality Lifepo4 Battery Pack 3.2V 150ah Lithium Battery Cell LFP32140
Product Description
Lithium Iron Phosphate (LiFePO4) batteries are a type of lithium-ion battery known for their stability, safety, and long cycle life. They are widely used in various applications, such as electric vehicles, renewable energy storage, and portable electronics. Thay can provide a stable voltage output throughout their discharge cycle, which contributes to consistent performance. It capability of handling high discharge currents, making them suitable for applications requiring quick bursts of power. Also they are more environmentally friendly than other lithium-ion chemistries, sinceit does not contain toxic metals like cobalt.
These battery pack is made for 10pcs of 3.2V 10pcs of lifepo4 battery cell, with the packing way 1S10P, the battery's capacity up to 150AH, very suitable for the device that need long time power supply.
Product Parameters
|
Items
|
Specification | Condition/Notes |
| Standard Capacity |
≥15Ah
|
|
| Nominal Voltage |
3.2V
|
0.33C |
|
3.1V
|
1C | |
|
Charge/Discharge Voltage Window
|
2.0～3.65V
|
>0℃ |
|
1.8～3.65V
|
≤0℃ | |
| Weight |
2720g±10g
|
|
| Weight Energy density |
≥185Wh/kg
|
0.33C/0.33C |
| Volume Energy density |
≥400Wh/L
|
0.33C/0.33C |
| AC Resistance |
1.5mQ≤R≤3mS
|
25℃±2℃ |
| DC Resistance |
<8mΩ
|
50%SOC,25℃±2℃ |
| Regular charge(Slow charge) |
7.5A 3.65V 0.75A 10℃≤T<45℃ |
Constant current Constant voltage Cut off condition(Termination) temperature |
|
Optimum working temperature
|
15～35℃ | |
|
Charge temperature range
|
0～55℃ |
|
|
Discharge temperature range
|
-30～60℃ | The highest cell temperature ≤ 60℃ |
