| Brand Name: | TINKO/OEM |
| Model Number: | 32700 4S6P |
| MOQ: | 100PCS |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |
High Capacity Lifepo4 Battery Pack 12.8V 36AH for Portable Electronics and Electric Vehicles
Product Description
This lifepo4 battery pack is made by 34 pcs of A grade 32700 6000mah lifepo4 battery cell, with the packing way 4S6P, the battery pack's voltage is 12.8V, and also the capacity up to 36AH. This battery is used for the electric vehicles,
Lithium Iron Phosphate battery known as lifepo4 battery, is also a kind of rechargeable lithium ion battery. It differs from other types of the lithium battery in many aspect: lifepo4 battery is more stable, much safer, and halso it lifespan is much longer. Due to these resons, they are getting more and more popular in various applications, such as electric vehicles, renewable energy storage, and portable electronics, solar light ect. It can provide a stable voltage output throughout its discharge cycle, which contributes to consistent performance.Besides, it is capable of handling high discharge currents, making them suitable for applications requiring quick bursts of power.
What's more, they are more environmental friendly compares to other lithium-ion chemistries, since it doesn't contain toxic materials like cobalt. All these characteristics makes them a best choice for a wide range of applications, including electric vehicles, solar energy systems, and backup power systems.
Product Parameters
|
Electrical Characteristics |
Nominal Voltage | 12.8V |
| Nominal Capacity | 36Ah @ 1C discharge to 2.0V 27℃ | |
| Energy | 460.8Wh | |
| Internal resistance | ≤130mΩ | |
| Cycle Life | >6000 cycles @ 0.2c charge/ discharge at 80%DOD,End of life 70% capacity | |
| Months Self discharge | ≤1% per month at 25℃ | |
|
Standard Charge |
Charge voltage | 25.55±0.2V |
|
Charge Mode( CC/CV) |
Charging with constant current1C to3.65V, then charging with constant voltage 3.65V to 0.01C under 25±2℃ , ℃charging time will not more than3h.) (Use Lithium-ion battery charger, which with an accuracy ±0.05V. | |
| Charge current | 1C | |
| Max.Charge current | 3C | |
|
Standard Discharge |
Discharge current | 1C |
| Max.continuous current | 3C | |
| Max. Pulse current | 5C | |
| Discharge cut-off voltage | 8V | |
|
Environmental |
Charge Temperature | 0℃ to 45 ℃ |
| Discharge Temperature | -20℃ to 60 ℃ | |
| Storage Temperature | 0℃ to 45 ℃ | |
| Water Dust Resistance | IP55 | |
|
Mechanical |
Cell & Method | LFP32700, 4S6P |
| Dimension (L*W*H) | 102*265*70.4mm | |
| Weight | Approx.3970g |

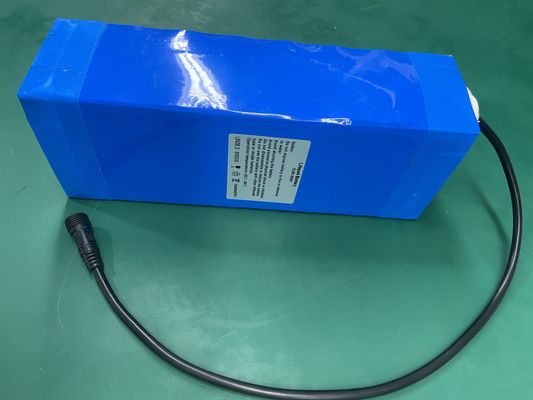

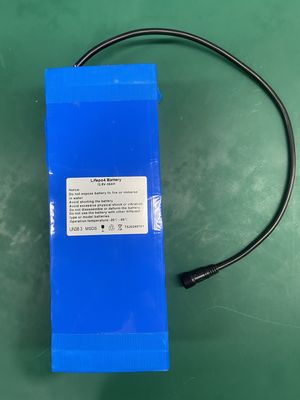

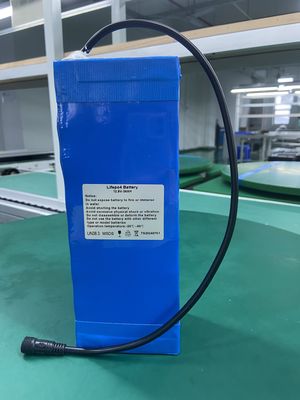

More Product Pics
