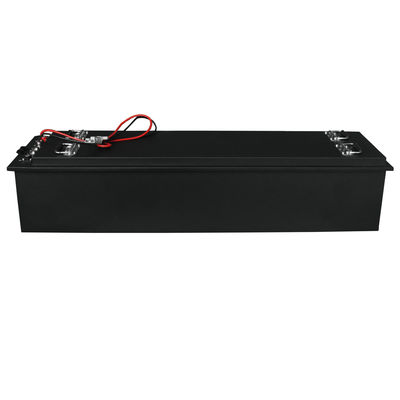

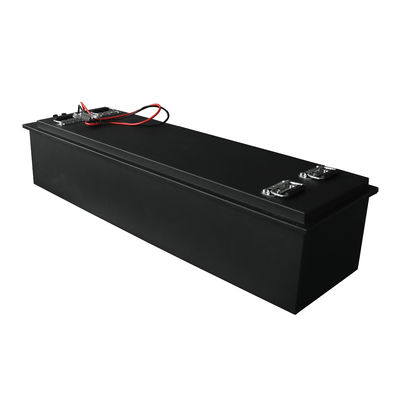

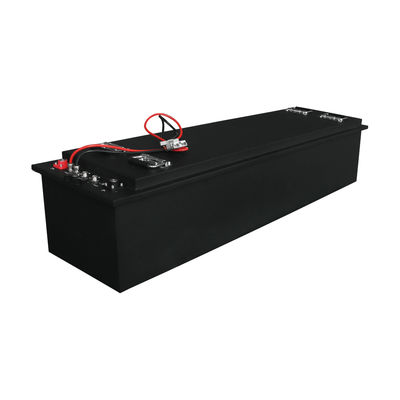

76.8V Lithium Golf Cart Batteries 230AH For Marine And Cart Applications With Top Grade Cells

76.8V Lithium Golf Cart Batteries 230AH For Marine And Cart Applications With Top Grade Cells

Brand Name: TINKO/OEM
Model Number: KTQC-76230
MOQ: 1 PCS
Price: Negotiable
Supply Ability: 100pcs/day
Detail Information
Place of Origin:
China
Certification:
CE/ROHS/MSDS/UN38.3
Battery Type:
Lifepo4
Voltage:
76.8V
Capacity:
230AH
Weight:
110kg
Size:
1048*305*245mm
Usage:
Home & Business
Warranty:
5 Years
Cycle Life:
≥6000
Packaging Details:
1pc/parer carton
Supply Ability:
100pcs/day
Highlight:

76.8V lithium golf cart batteries

,

230AH lithium golf cart batteries

,

230AH marine lifepo4 battery

Product Description


Long Cycle Life 76.8V Lifepo4 Battery 230AH for Golf Cart and Electric Forklifts

Product Description

This Golf Cart battery 76.8V 230Ah, is made up for 24pcs of Lithium iron phosphate batteries. Lithium iron phosphate (LiFePO4 or LFP) batteries have become increasingly popular in the vehicle industry because of their many advantages over traditional lead-acid batteries and even over other lithium-ion batteries.
Lifepo4 batteries have many advantages over traditional lead-acid batteries and other lithium-ion batteries.They are much safer, they have a longer cycle life, higher temperature tolerance, lower self-discharge rate, and higher energy density, which makes them more efficient, durable, and reliable for vehicle use. LiFePO4 batteries also have a relatively low cost of ownership, as they require less maintenance and replacement than traditional lead-acid batteries. They also have a low self-discharge rate, meaning that they can hold a charge for longer periods of time without losing capacity. Also they have a very low environmental impact. Because they are completely recyclable and can be broken down into their component parts without releasing toxic chemicals. All these factors make LFP batteries a great choice for marine and vehicle applications such as golf cart, electric forklifts, sightseeing vehicles, pickup trucks, electric boats, yachts, and even ships and sub marine.
TINKO uses grade A LiFePO4 cells to maintain higher energy density, stable performance, and greater power of the battery pack. We are dedicated to provide green power solutions and are one of the leaders in the LiFePO4 battery industry thanks to our top-grade cells and authoritative accreditations.


Product Parameters



Items
76.8V Lithium Golf Cart Batteries 230AH For Marine And Cart Applications With Top Grade Cells 0



Specification





Notes





Nominal Capacity







230.0Ah



0.5C / 0.5C, 25℃ ± 2℃, 2.5 V ~ 3.65 V, Fresh cell





Nominal Energy







17.664kWh



Nominal Voltage





76.8V

0.5C discharge, 25℃ ± 2℃, 40 V ~ 58.4 V


     End-off-charge Voltage  (Umax)




87.6 V



/

   End-off-discharge Voltage (Umin)60 V (T > 0℃)            48 V (T ≤ 0℃)



/



Standard Charging Current







115 A



0.5C



Maximum Instantaneous Charging Current





2C



30 s, ≤ 80% SOC, 25℃ ±2℃



Standard Discharging Current





115 A



0.5C



Maximum Instantaneous Discharging Current





3C

30 s, ≥ 30% SOC, 25℃ ± 2℃



Initial IR



   0.20 mΩ ± 0.05 mΩ

AC, 1 kHz, 19% ~ 40% SOC, Fresh cell



Direct Current Resistance (DCR)





≤ 1.2 mΩ

25℃, 50% SOC, 1C, 10 s, Fresh cell



Weight





    71kg



/









Dimension



(With Insulation Film )

 Height



      245mm



With Terminal



Length



    1048mm



/

Width


           305mm



(300 kgf ±20 kgf compression force, Delivery SOC)





Operation Temperature





Charge Temperature





-10℃~65℃



/



  Discharge Temperature





-35℃~65℃



/




Storage

Temperature





3 months



0℃ ~ 35℃




Delivery SOC



1 month

-20℃ ~ 45℃
