| Brand Name: | TINKO/OEM |
| Model Number: | D5 |
| MOQ: | 1PC |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |
protable power station D5 2500w suitable for emergency backup
Product Description

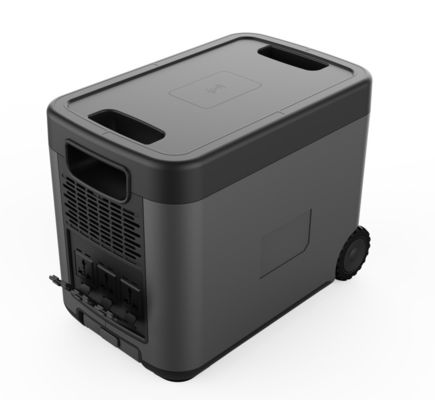

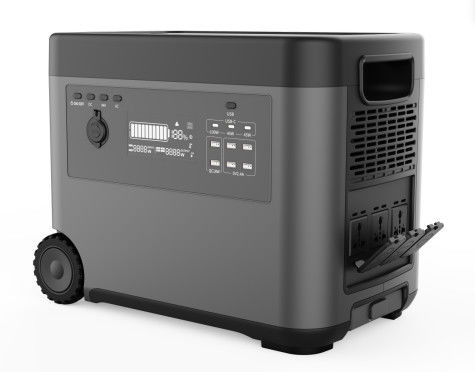

This product is a 2000watts output portable power station suitable for home emergency backup, outdoor travel, emergency rescue, and field work applications. The product is equipped with a built-in lithium battery, which is designed as a 15-series 3-parallel design with a voltage of 48Vdc~153.2V. It has an inverter AC output of 220V/50-60Hz pure sine wave with AC input, MPPT solar power and automotive inputs, and multiple DC output ports including USB, QC3.0, TYPE-C, and automotive cigarette lighter interfaces.
Specifications
|
Model Name |
D5 2500W protable power station for emergency back up use |
| Battery Type | Lithium iron phosphate |
| Capacity Maintenance | ≥70% |
| Charge Current | 0.5C |
| Discharge Currenty | 1C |
| Input |
AC: 1500W |
| Output | DC: USB-A: 5V2.4A*4 USB-B: QC18W*2 USB-C: 5V2.4A*2 100W*1 45W*2 AC: 2500W*4 Cigarette lighter: 12V 8A Wireless: 15W |
| Cycle Life | ＞3000 times |
| Warranty | 1 Year |
| Weight | 25kgs |

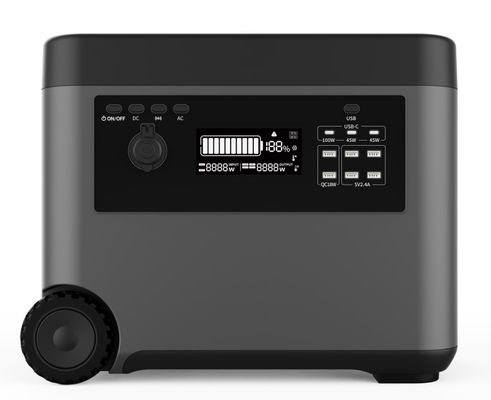

Configuration and Function Description
| Number | Name | Brief Description of Functions |
| 1 | Power button | Turn on/off the machine, press and hold for 1 second to turn it on, and press and hold for 1 second to turn it off |
| 2 | DC Button | Switch the cigarette lighter output, click once to turn on the DC function, click once to turn off the DC function |
| 3 | Wireless Button | Wireless charging switch, click once to turn on wireless charging, click once to turn off wireless charging function |
| 4 | AC Button | Switch AC output, click once to turn AC on, click once to turn AC off |
| 5 | Display | Power indicator, output meets the indicator |
| 6 | Type-C | 1 Type-C, PD100W output port |
| 7 | USB Button | Used to switch USB output, click USB to open, click USB to close |
| 8 | Type-C | 2 Type-C, PD45W output ports |
| 9 | USB-A | 4 5V2.4A output ports |
| 10 | USB-A | 2 QC3.0 18W output ports |
| 11 | Cigarette lighter output | 12.5V 8A 100W output port |
| 12 | AC Output | AC output port, supporting up to 3000W output, equipped with 4 plugs according to Japanese and American standards, 2 plugs according to European standards, and 3 plugs according to Chinese/British/universal standards |
| 13 | DC Anderson input | 11V-50VDC 400W, MPPT input, can be equipped with Anderson or XT60 |
| 14 | AC Input | AC input port, supporting up to 1500W input |
| 15 | fuse | AC 20A overcurrent protection |
