| Brand Name: | TINKO/OEM |
| Model Number: | TK18650 10S2P |
| MOQ: | 100PCS |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

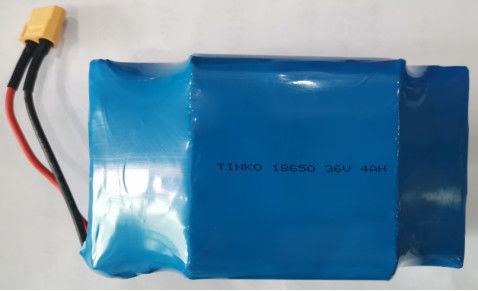

Rechargeable High Voltage 36V Lithium-ion 18650 Battery Pack 4000mah for Swing Cars
Battery Description
This lithium ion battery pack is made up by 20pcs of 2000mah 18650 battery cell, each cell is 5C high rate kind battery, with the pack way 10S2P makes it's voltage up to 36V and high capacity to 4000mah.
TINKO lithium-ion batteries are widely used due to their advantageous features. They have a high energy-to-weight ratio, so they can store more energy in a smaller, lighter package compares to other. They also can work hundreds to thousands of charge and discharge cycles, making them durable for long-term use. Their low self-discharge allowed them to retain charge for extended periods when not in use. With these features the lithium battery used in a variety of applications, from consumer electronics (smartphones, laptops, alarm devices, monitor devices ect.) to electric vehicles. Their voltage and capacity also can be designed through different usage.
Battery Parameters
|
No
|
Term | Standard value | Notes |
| 1 |
Nominal capacity
|
4.0Ah | 0.2C Discharge |
|
Minimum Capacity
|
3.8Ah | 0.2C Discharge | |
| 2 |
Nominal voltage
|
36V | |
|
3
|
Resistance | After standard charge, AC 1KHz test | |
| Battery Pack:≤250mΩ | |||
| 4 |
Charge limit voltage
|
42V±0.05V | |
| 5 |
Standard charge current
|
0.8A | 0.2C |
| 6 |
Maximum charge current
|
2.0A | 0.5C |
| 7 |
Standard discharge current
|
0.8A | 0.2C |
| 8 |
Maximum discharge current
|
15.0A | 3.75C |
| 9 |
Discharge cut-off voltage
|
30V±1V | |
| 10 |
Operating Temperature
|
0～45℃ | Charge |
| -10～60℃ | Discharge | ||
|
11
|
Storage temperature Recommend(20±5℃)
|
-10～45℃ |
Less than a month
|
| 10～35℃ |
Less than three months
|
||
| 12 |
Storage Humidity
|
65%±20%RH | |
| 13 |
Battery storage for 3 months need to charge and discharge a loop to 36V ~ 39V.
|
||
| 14 | Cycle Life |
300 cycle |
≧ 60% initial capacity
|
Product Drawing
Product Applications
