| Brand Name: | TINKO/OEM |
| Model Number: | 602225 |
| MOQ: | 1000PCS |

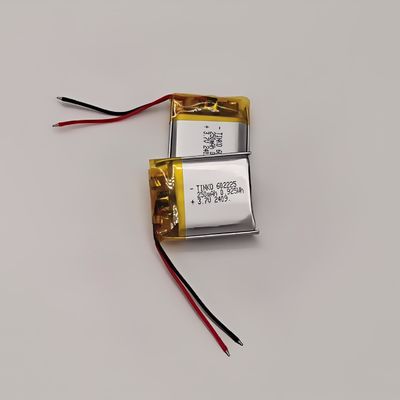

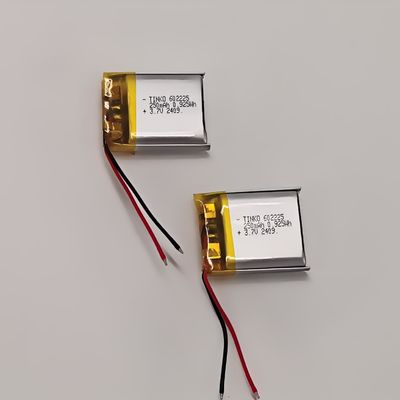

High Energy and Safety Li Polymer Battery 3.7V 602225 Customizable Capacity for Portable Devices
Product Description
Li-polymer battery (Li-polymer, also known as polymer lithium-ion battery). In polymer batteries, the electrolyte plays a dual function of the diaphragm and the electrolyte: on the one hand, it separates the positive and negative electrode materials,like a diaphragm, so that there is no self-discharge and short circuit inside the battery, and on the other hand, it conducts lithium ions between the positive and negative electrodes like an electrolyte.
Because of it's unique structure, li-polimer battery has a variety of advantages such as high energy, miniaturization, ultra-thin, lightweight and high safety compares to other cylindrical lithium battery. Li-po batteries can be made into batteries of any shape and capacity to meet the needs of various products you want. It uses aluminum-plastic packaging, internal problems can be immediately displayed and found through the outer packaging, even if there is a security risk, it will not explode, but only bulge.
Product Parameters
|
No.
|
Items |
Criteria
|
Remarks
|
|
|
1 |
|
250 mAh |
From 4.20V discharge 3.00V by 1.0C
|
|
|
2 |
|
250 mAh | ||
|
3 |
|
0.925Wh | ||
|
4 |
|
3.85-3.95. |
||
|
5 |
|
≤ 110 mΩ | AC 1 KHz after standard charge | |
|
6 |
|
Charging to 4 . 2 0 V with constant current at 0 . 5 C initially and then with constant voltage till charge current declines to 0 . 0 1 C. | ||
|
7 |
|
Discharge to 3.00V with constant current at 0.5C. | ||
|
8 |
|
4.20V | Defined in this DOC:FC= 4.20V | |
|
10 |
|
3.00V | Defined in this DOC:FD= 3.00V | |
|
9 |
|
≥2.75V | ||
|
10 |
Continuous Charge Current
|
|
0℃ ~ 45℃ | |
|
|
15℃ ~ 45℃ | |||
|
11 |
Continuous Discharge Current |
|
-10℃ ~ 60℃ | |
|
|
10 ℃ ~ 50℃ | |||
|
12 |
Storage Temperature |
|
Less than 1 month | |
|
|
Less than 6 months | |||
| + 10℃ ~ +25℃ |
|
|||
|
15 |
Storage Humidity | ≤ 75% RH | ||
|
Item |
Description
|
Dimension and Spec.
|
| T | Thickness | ≤ 6.0 mm |
| W | Width | ≤22.0 mm |
| H | Height | ≤ 25.5 mm |
| A | Cell Tab Length | 7.0±1.0 mm |
| B | Cell Tab Pitch | 9.0±2.0 mm |
| C | Cell Tab Width | 2.0±0.2 mm |
| D | Package Width | 3.5±0.5 mm |
