| Brand Name: | TINKO/OEM |
| Model Number: | 606090 |
| MOQ: | 1000PCS |

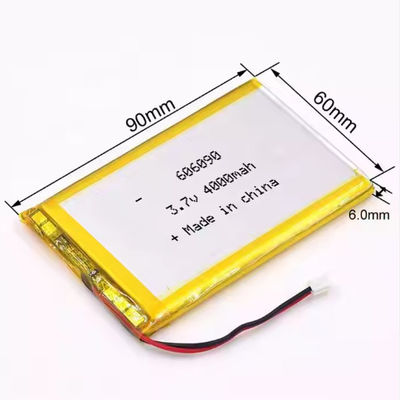

High Capacity 3.7V Li Polymer Battery 606090 4000mAh for Rechargeable Devices
Product Description
Lithium polymer battery, often shorted as LiPo, LIP, Li-poly, lithium-poly among others, is a type of rechargeable lithium-ion battery that employs a polymer electrolyte instead of a liquid one, which made possible by the use of high conductivity semisolid (gel) polymers. Compares to other types of lithium battery, Li-polymer batteries has it's unique features that make them highly suitable for many applications such as laptop, camera, speaker ect. One of their most significant advantages is the form factor, it can be made into almost any shape you want, providing flexibility for device design. Also this battery is very lightweight, which make it suitable for the portable devices, particularly useful for consumer electronics like smartphones and laptops where space and design are key factors. In addition, they have a lower chance of suffering from electrolyte leakage compared to their lithium-ion counterparts, because they use a polymer electrolyte instead of a liquid one. The safety profile is further enhanced due to their robustness against overcharging. Last but not the least, they have a slow loss of charge when not in use, known as a low self-discharge rate, which makes them a convenient option for many electronic devices.
Product Parameters
|
No.
|
Items
|
Criteria
|
Remarks
|
|
|
1 |
Typical capacity
|
4000 mAh |
From 4.20V discharge 3.00V by 1.0C
|
|
|
2 |
Min Capacity
|
3980 mAh | ||
|
3 |
Energy
|
14.8Wh | ||
|
4 |
Open Circuit Voltage
|
3.85-3.95. V |
||
|
5 |
Internal Impedance
|
≤ 140 mΩ | AC 1 KHz after standard charge | |
|
6 |
Standard Charge Method
|
Charging to 4 . 2 0 V with constant current at 0 . 5 C initially and then with constant voltage till charge current declines to 0 . 0 1 C. | ||
|
7 |
Standard Discharge Method
|
Discharge to 3.00V with constant current at 0.5C. | ||
|
8 |
Fully charge voltage( FC)
|
4.20V | Defined in this DOC:FC= 4.20V | |
|
10 |
Fully discharge voltage( FD)
|
3.00V | Defined in this DOC:FD= 3.00V | |
|
9 |
Discharge cut-off voltage
|
≥2.75V | ||
|
10 |
Continuous Charge Current
|
800 mA (0.2C) | 0℃ ~ 45℃ | |
| 4000 mA ( 1.0C) MAX | 15℃ ~ 45℃ | |||
|
11 |
Continuous Discharge Current | 2000mA (0.5C) | -10℃ ~ 60℃ | |
| 4000 mA ( 1.0C) MAX | 10 ℃ ~ 50℃ | |||
|
12 |
Storage Temperature | - 10℃ ~ +35℃ | Less than 1 month | |
| 0℃ ~ +30℃ | Less than 6 months | |||
| + 10℃ ~ +25℃ | Less than 12 months | |||
|
15 |
Storage Humidity | ≤ 75% RH | ||
