Brand Name: | TINKO/OEM |
Model Number: | 12V 100AH |
MOQ: | 1PC |
Price: | Negotiable |
Supply Ability: | 200pcs/day |
PRODUCT DESCRIPTION

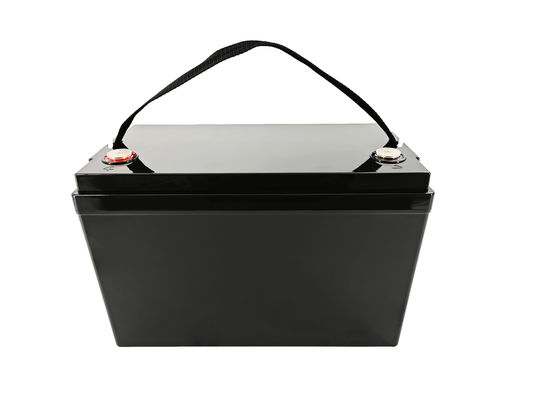

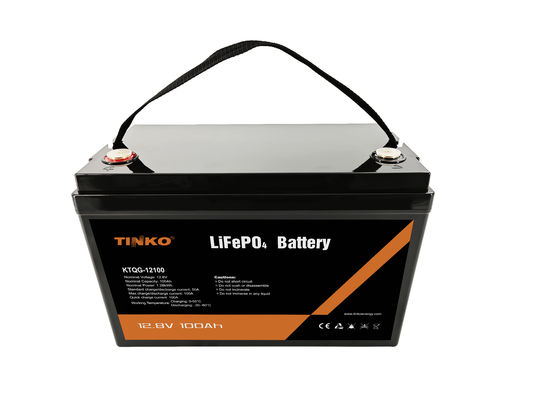

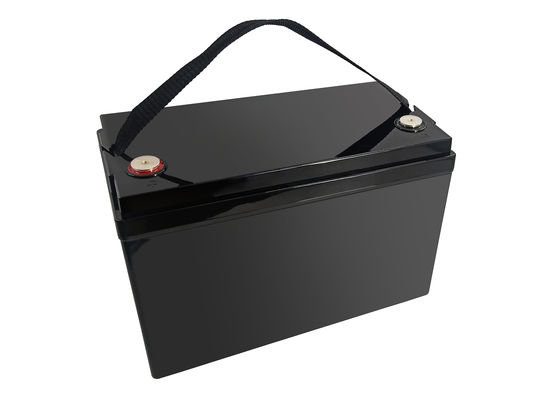

TINKO 12V 100AH LiFePO4 deep cycle battery is engineered to deliver exceptional performance, making it the ideal choice for off-grid solar setups, renewable energy systems, and more. As a top-tier 12V 100AH lifepo4 battery, it combines durability, efficiency, and smart technology to meet all your energy storage needs.
PRODUCT FEATURES
PRODUCT SPECIFICATIONS
NO |
Projects |
Specification |
Remark |
Cell unit parameter |
|||
1 |
Battery types and materials |
LiFePO4 | |
2 |
Rated voltage/capacity |
3.2V / 100Ah | |
3 |
Single battery voltage range |
2.5V~3.65V | |
4 |
Single battery weight |
1.98Kg | |
5 |
The battery internal resistance |
≤ 0.5mΩ | |
6 |
Battery size |
50*160*116mm | |
Battery parameter | |||
1 |
Rated voltage |
12.8V | |
2 |
Rated capacity |
100Ah | |
3 |
Battery pack voltage range |
10~14.6V | |
4 |
Total Power |
1.28KWh | |
5 |
Combination |
4S1P | |
6 |
Insulation resistance test value |
≥1.2MΩ | |
7 |
Operating temperature |
Charging 0 ~ 55℃; Discharging -20 ~ 60℃ |
|
8 |
Standard charging current |
0.2C | |
9 |
Quick charging current |
1C | |
10 |
Standard discharge current |
0.2C | |
11 |
Maximum continuous discharge current |
1C | |
12 |
Gross weight |
Around 11.7KG | |
13 |
Ambient relative humidity |
20-85%RH | |
14 |
Battery size |
333*176*221 |
PRODUCT APPLICATIONS
