| Brand Name: | TINKO/OEM |
| Model Number: | KTQG - 24200 |
| MOQ: | 1PC |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

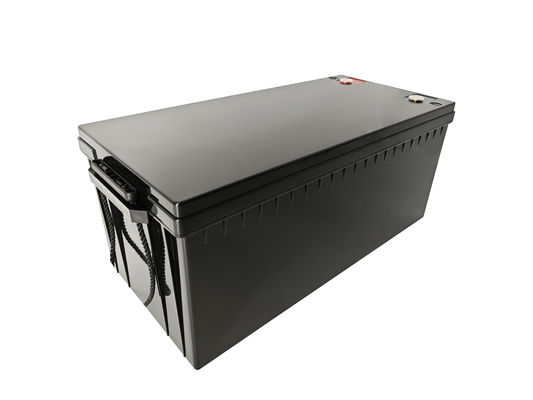

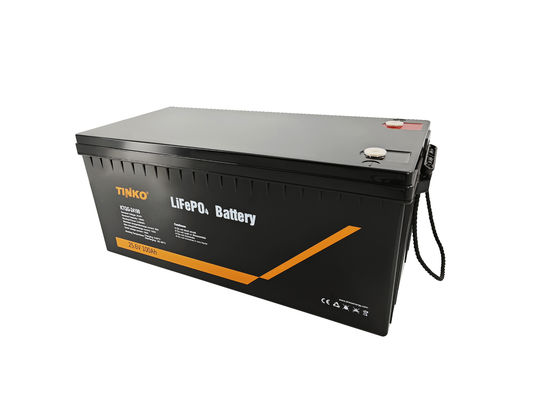

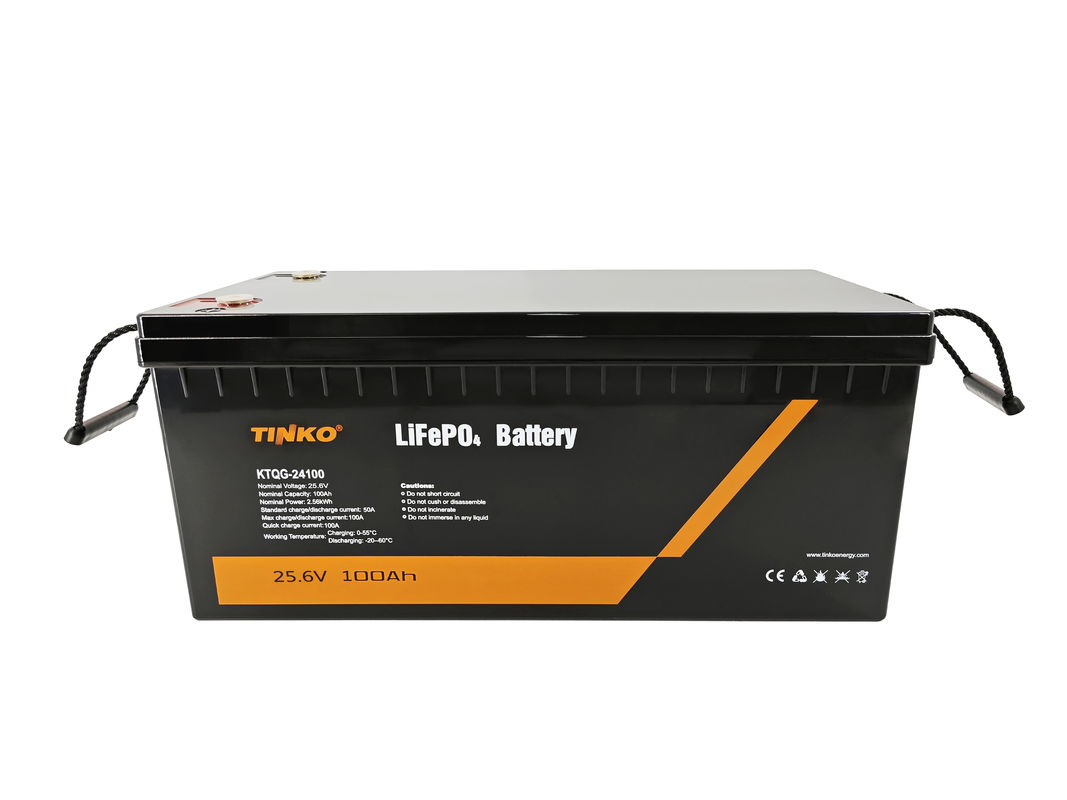

Deep Cycle 24V 100Ah LiFePO4 Battery with Long Lifetime up to 6000 Cycles
Product Description
TINKO 24V 100Ah LiFePO4 battery pack also made by A grade lifepo4 battery cell which is more stable and have a higher energy density. They are widely used in many areas such as RV, Solar system, Household Battery back up, Marine, Off-Grid and Electric Scooter, Electric Handicap and so on. Each battery has intelligent BMS to ensure safe and efficient operation.
Product Parameters
| NO |
Projects |
Specification |
Remark |
| 电池单体参数Cell unit parameter | |||
| 1 |
Battery types and materials |
LiFePO4 | |
| 2 |
Rated voltage/capacity |
3.2V / 100Ah | |
| 3 |
Single battery voltage range |
2.5V～3.65V | |
| 4 |
Single battery weight |
1.92Kg | |
| 5 |
The battery internal resistance |
≤ 0.5mΩ | |
| 6 |
Battery size |
50*160*116mm | |
| Battery parameter | |||
| 1 |
Rated voltage |
25.6V | |
| 2 |
Rated capacity |
100Ah | |
| 3 |
Battery pack voltage range |
20～29.2V | |
| 4 |
Total Power |
2.56KWh | |
| 5 |
Combination |
8S1P | |
| 6 |
Insulation resistance test value |
≥1.2MΩ | |
| 7 |
Operating temperature |
Charging 0 ~ 55℃； Discharging -20 ~ 60℃ |
|
| 8 |
Standard charging current |
0.2C | |
| 9 |
Quick charging current |
0.5C | |
| 10 |
Standard discharge current |
0.5C | |
| 11 |
Maximum continuous discharge current |
1C | |
| 12 |
Gross weight |
Around 21KG | |
| 13 |
Ambient relative humidity |
20-85%RH | |
| 14 |
Battery size |
522*240*218 | |
