| Brand Name: | TINKO/OEM |
| Model Number: | KTQG - 48200 |
| MOQ: | 1PC |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

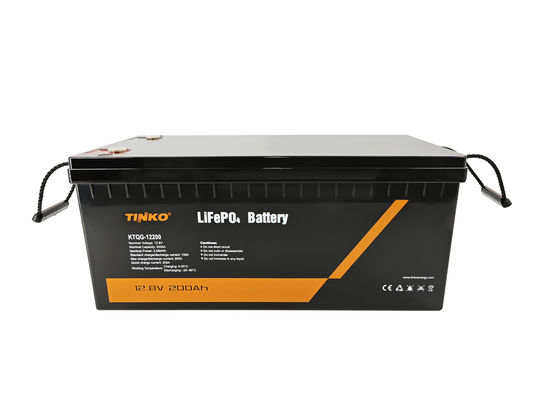

12V 200Ah LiFePO4 Battery with Intelligent BMS, Ideal for Residential solar energy storage and backup power
Product Description
TINKO 12V 200Ah LiFePO4 battery pack made by A grade lifepo4 battery cell which is more stable and have a higher energy density. They are widely used in many areas such as RV, Solar system, Household Battery back up, Marine, Off-Grid and Electric Scooter, Electric Handicap and so on. Each battery has intelligent BMS to ensure safe and efficient operation.
Product Parameters
|
NO
|
Projects |
Specification |
Remark |
|
Cell unit parameter |
|||
| 1 |
Battery types and materials
|
LiFePO4 | |
| 2 |
Rated voltage/capacity
|
3.2V / 100Ah | |
| 3 |
Single battery voltage range
|
2.5V～3.65V | |
| 4 |
Single battery weight
|
1.9Kg | |
| 5 |
The battery internal resistance
|
≤ 0.3mΩ | |
| 6 |
Battery size |
50*160*116mm | |
| Battery parameter | |||
| 1 |
Rated voltage
|
12.8V | |
| 2 |
Rated capacity
|
200Ah | |
| 3 |
Battery pack voltage range
|
10～14.6V | |
| 4 |
Total Power |
2560Wh | |
| 5 |
Combination |
4S2P | |
| 6 |
Insulation resistance test value |
≥1.2MΩ | |
| 7 |
Operating temperature |
Charging 0 ~ 55℃； Discharging -20 ~ 60℃ |
|
| 8 |
Standard charging current |
0.5C | |
| 9 |
Quick charging current |
1.0C | |
| 10 |
Standard discharge current |
1.0C | |
| 11 |
Maximum continuous discharge current |
2.0C | |
| 12 |
Gross weight |
Around 20KG | |
| 13 |
Ambient relative humidity |
20-85%RH | |
| 14 |
Battery size |
483*170*240mm(±2mm) | |
