| Brand Name: | TINKO/OEM |
| Model Number: | KTQG - 12068 |
| MOQ: | 100PC |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

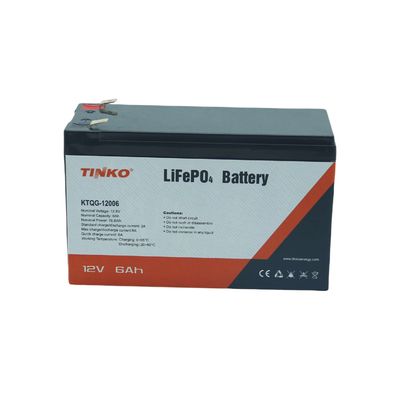

12V 6.8Ah LiFePO4 Battery Ideal for Residential solar energy storage and backup power
Product Description
Lithium iron phosphate (LiFePO4) batteries, also known as LFP batteries, are a type of lithium-ion battery that have gained popularity in recent years due to their numerous advantages over traditional lead-acid batteries. LiFePO4 batteries offer many advantages over traditional lead-acid batteries, including high energy density, long lifespan, high safety, low cost of ownership, low self-discharge rate and low environmental impact. These characteristics make them a popular choice for a wide range of applications, including electric vehicles, solar energy systems, and backup power systems.Our TINKO's lifepo4 battery pack all use A grade lifepo4 battery cell which is much more stable and reliable. Best quality is always our persuit.
Product Parameters
| NO |
Projects |
Specification |
Remark
|
|
Cell unit parameter
|
|||
| 1 |
Battery types and materials
|
LiFePO4 | |
| 2 |
Rated voltage/capacity
|
3.2V / 3.4Ah | |
| 3 |
Single battery voltage range
|
2.5V～3.65V | |
| 4 |
Single battery weight
|
84g | |
| 5 |
The battery internal resistance
|
≤ 25mΩ | |
| 6 |
Battery size
|
26.25*65.5mm | |
|
Battery parameter
|
|||
| 1 |
Rated voltage
|
12.8V | |
| 2 |
Rated capacity
|
6.8Ah | |
| 3 |
Battery pack voltage range
|
10～14.6V | |
| 4 |
Total Power
|
87.04Wh | |
| 5 |
Combination
|
4S2P | |
| 6 |
Insulation resistance test value
|
≥1.2MΩ | |
| 7 |
Operating temperature
|
Charging 0 ~ 55℃； Discharging -20 ~ 60℃ |
|
| 8 |
Standard charging current
|
0.2C | |
| 9 |
Quick charging current
|
0.5C | |
| 10 |
Standard discharge current
|
0.5C | |
| 11 |
Maximum continuous discharge current
|
1C | |
| 12 |
Gross weight
|
Around 1.2KG | |
| 13 |
Ambient relative humidity
|
20-85%RH | |
| 14 |
Battery size
|
90*70*152(mm) | |
