10kWh 51.2V Rack Mounted Lithium Ion Solar Battery

10kWh 51.2V Rack Mounted Lithium Ion Solar Battery

Brand Name:	TINKO/OEM
Model Number:	5U
MOQ:	1PC
Price:	Negotiable
Supply Ability:	100pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/MSDS/UN38.3

Document:

Product Brochure PDF

Color:

Black

Installation:

Rack-mounted

Voltage:

51.2V

Efficiency:

95%

Warranty:

10 Years

Chemistry:

Lithium-ion

Communication:

Wi-Fi

Cycle Life:

6000 Cycles

Capacity:

10kWh

Packaging Details:

1pc/parer carton

Supply Ability:

100pcs/day

Highlight:

51.2V solar energy storage battery

10kwh solar energy storage battery

10kwh solar battery 48v 200ah

Product Description

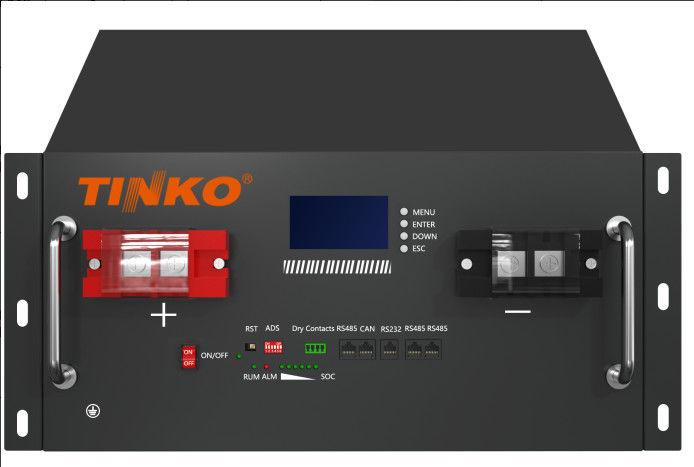

Rack Mounted 10kWh 51.2V Solar Energy Storage Battery

48V 200Ah lithium ion battery designed for solar systems, featuring premium LiFePO4 technology for superior performance and reliability.

Key Attributes

Attribute	Value
Color	Black
Installation	Rack-mounted
Voltage	51.2V
Efficiency	95%
Warranty	10 years
Chemistry	Lithium-ion
Communication	Wi-Fi
Cycle Life	6000 cycles
Capacity	10kWh

Premium Features

High-Quality Components: Constructed with premium A-grade lithium iron phosphate cells for stability and reliability.

Versatile Applications: Ideal for telecommunications and various energy storage needs with strong performance.

Robust Steel Design: Durable metal casing with high water resistance for harsh environments.

Intelligent BMS System: Built-in smart Battery Management System with real-time monitoring display.

Extended Cycle Life: Long-lasting performance with 10-year warranty for worry-free operation.

Product Features

Compatible with over 20 inverters
Tier One, A+ Cell Composition
10.24kWh expandable up to 307.2kWh
99% Efficiency LiFePo4 16-Cell Pack with 51.2V voltage
Modular design for highest flexibility
10-20 year Design Life
Multiple communication interfaces: RS485, RS232, CAN

Technical Specifications

No.	Item	General Parameter	Remark
1	Combination method	16S1P
2	Rated Capacity	Typical: 206Ah Minimum: 200Ah	Standard discharge after Standard charge(for the whole battery pack)
3	Factory Voltage	51V-53V(40-60%)	Operation Voltage
4	Discharge cut-off Voltage	40V
5	Charge cut-off Voltage	58.4V
6	Internal Impedance	≤40mΩ	Internal resistance measured at AC 1KHZ after 50% charge
7	Standard charge	Constant Current 40A Constant Voltage see No.5 0.02CA cut-off Charge time: Approx 5.0h Limiting current: 210A
8	Standard discharge	Constant current:40A end voltage see NO.4
9	Maximum Continuous Charge Current	210A	≥10ºC
10	Operation Temperature Range	Charge: 0~55℃ Discharge: -20~60℃	60±25%R.H.Bare Cell
11	Storage Temperature Range	Less than 12 months: -10~35℃ Less than 3 months: -10~45℃ Less than 7 day: -20~65℃	60±25%R.H.at the shipment state
12	Dimensions	600482223mm	Include Bracket
13	Weight	Approx: 85kg
