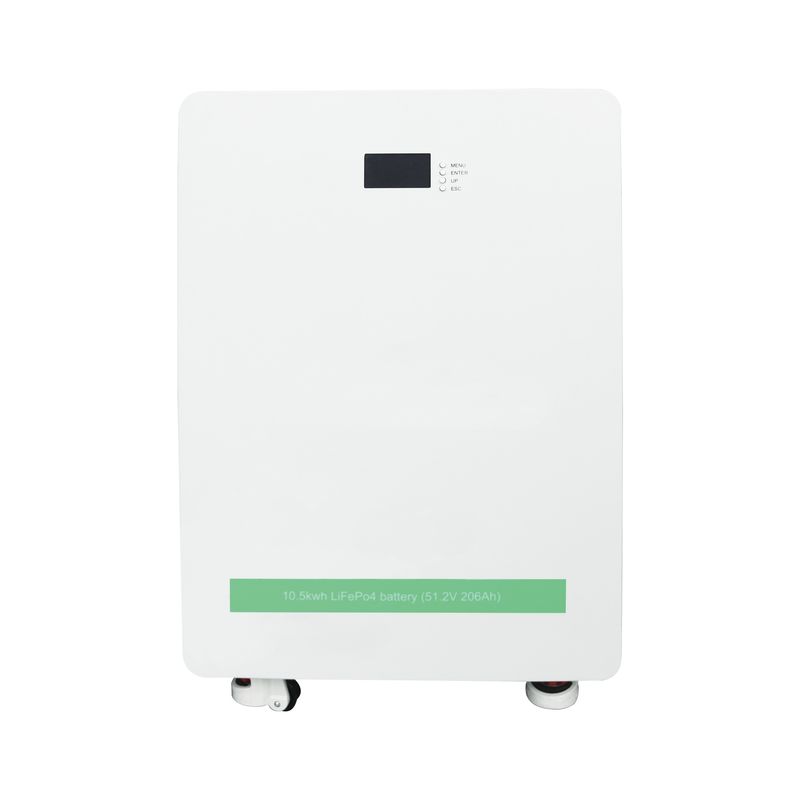

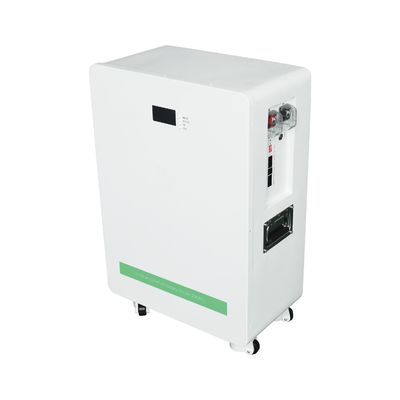

48V 206AH Lifepo4 Home Storage Battery with 10-Year Warranty

48V 206AH Lifepo4 Home Storage Battery with 10-Year Warranty

Brand Name:	TINKO/OEM
Model Number:	KTLS-51200
MOQ:	1PC
Price:	Negotiable
Supply Ability:	100pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/MSDS/UN38.3

Document:

Product Brochure PDF

Battery Type:

Lifepo4

Voltage:

48V

Capacity:

206AH

Weight:

94kg

Size:

470*750*271mm

Usage:

Home & Business

Warranty:

10 Years

Original:

Dongguan, China

Packaging Details:

1pc/parer carton

Supply Ability:

100pcs/day

Highlight:

TINKO lifepo4 battery 48V

lifepo4 battery 48V 206AH

lifepo4 powerwall With Wheel

Product Description

High Capacity LiFePO4 Battery 48V 51.2V 206AH With Wheel Home Storage LiFePO4 Powerwall

Product Attributes

Attribute	Value
Battery Type	LiFePO4
Voltage	48V
Capacity	206AH
Weight	94kg
Size	470750271mm
Usage	Home & Business
Warranty	10 years
Origin	Dongguan, China

Product Description

Our 10.55kWh LiFePO4 Battery (48V 206AH) is designed for energy storage systems, offering superior performance compared to traditional lead-acid batteries. Lithium iron phosphate (LiFePO4) technology provides higher energy density, excellent safety performance, and a lifespan up to 6000 cycles - three times longer than lead-acid batteries.

Manufactured with A-grade LiFePO4 cells, our storage battery delivers reliable power during outages and is ideal for both residential and commercial applications. We offer various capacity options to match your specific power requirements, making it particularly suitable for remote locations with limited grid access.

Product Features

Compatible with over 20 inverters
A+ LiFePO4 Cell Composition
10.55kWh high energy capacity
99% Efficiency LiFePO4 16-Cell Pack (51.2V)
Modular design for maximum flexibility
Extended lifespan: 10-20 year design life
Multiple communication interfaces: RS485, RS232, CAN
Integrated Intelligent BMS system

Product Parameters

No.	Item	General Parameter	Remark
1	Combination way	16S1P
2	Rated Capacity	Typical: 206Ah Minimum: 200Ah	Standard discharge after Standard charge (for the whole battery pack)
3	Factory Voltage	51V-53V (40-60%)	Operation Voltage
4	Voltage at end of Discharge	40V	Discharge Cut-off Voltage
5	Charging Voltage	56-58V
6	Internal Impedance	≤40mΩ	Internal resistance measured at AC 1KHZ after 50% charge
7	Standard charge	Constant Current 40A Constant Voltage see No.5 0.02CA cut-off Charge time: Approx 5.0h
8	Standard discharge	Constant current:40A end voltage see NO.4
9	Maximum Continuous Charge Current	210A	≥10ºC
10	Operation Temperature Range	Charge: 0~55℃ Discharge: -20~60℃	60±25% R.H. Bare Cell
11	Storage Temperature Range	Less than 12 months: -10~35℃ Less than 3 months: -10~45℃ Less than 7 day: -20~65℃	60±25% R.H. at the shipment state
12	Dimensions	568245907mm	Include Bracket
13	Weight	Approx: 101kg

Product Images
