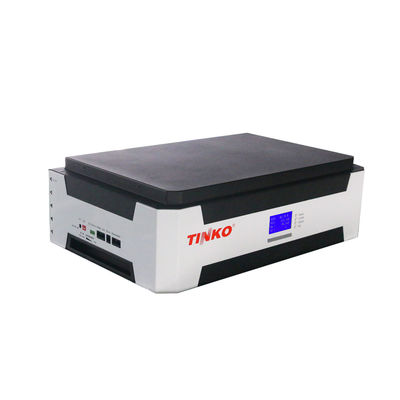

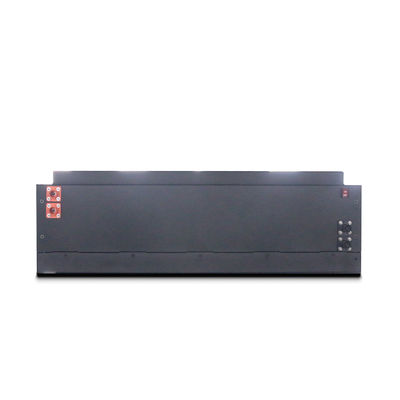

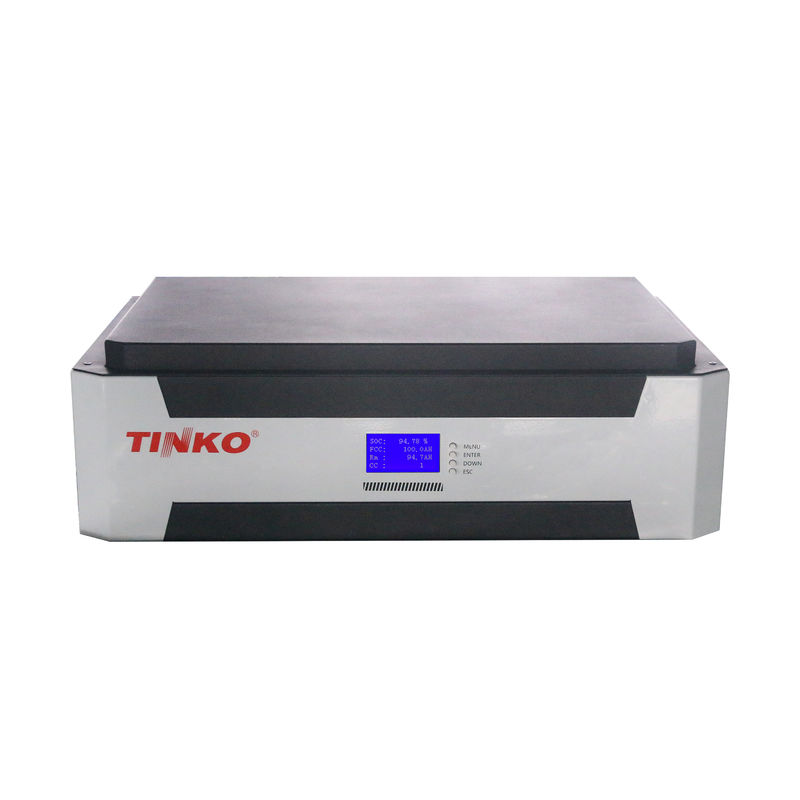

48V 100Ah LiFePO4 Rack Battery 5.12kWh for Solar Systems

Name: 48V 100Ah LiFePO4 Rack Battery 5.12kWh for Solar Systems
Brand: Dongguan KunTeng New Energy Technology Co., Ltd.
SKU: KT-48100W
Availability: InStock

Brand Name:	TINKO/OEM
Model Number:	KT-48100W
MOQ:	1PC
Price:	Negotiable
Supply Ability:	100pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS/MSDS/UN38.3

Document:

Product Brochure PDF

Voltage:

51.2V

Capacity:

100AH

Energy:

5.12kWh

Dimension:

635*400*192mm

Weight:

48kg

Communication Port:

RS485, RS232, CAN

Cycle Life:

＞6000 Times

Max Stackable:

Packaging Details:

1pc/parer carton

Supply Ability:

100pcs/day

Highlight:

48V 100ah rack mount lifepo4 battery

OEM rack mount lifepo4 battery

KT-48100W rackmount lifepo4 battery

Product Description

OEM 48V 100ah Rack Mount Lifepo4 Battery KT-48100W For Solar System

Product Specifications

Attribute	Value
Voltage	51.2V
Capacity	100AH
Energy	5.12kWh
Dimension	635400192mm
Weight	48kg
Communication Port	RS485, RS232, CAN
Cycle Life	＞6000 times
Max Stackable	16

Product Overview

Rack-mounted LiFePO4 Battery 48V 100AH compatible with a variety of inverters. Our cutting-edge 5kWh Stackable Home Energy Storage Battery combines functionality with aesthetics, featuring a patented design that enhances your home while providing reliable energy storage solutions.

Key Features

Modern, sleek design that complements any home environment
Supports both off-grid and grid-tied configurations for maximum flexibility
Modular design allows stacking of additional battery packs to meet growing energy needs
Advanced LiFePO4 technology ensures stability and impressive cycle life
Maintains consistent voltage throughout discharge cycle for reliable power delivery
Performs well in diverse temperature environments (-20°C to 60°C)
Environmentally friendly with superior safety characteristics

Technical Parameters

NO.	Basic Parameters	Model: KT-3U	Note
1	Nominal Voltage (V)	51.2V
2	Nominal Capacity (Ah)	100AH	Standard discharge after Standard charge
3	Energy (kWh)	5.12kWh
4	Internal Impedance (mΩ)	≤40mΩ	Internal resistance measured at AC 1KHZ after 50% charge fresh battery 1week after shipment and cycles less than 5times to do the measurement
5	Standard Charge	Constant Current 20A (0.2C)	Charging Time: around 5 hours
6	Charge Cut-off Voltage (V)	58.4V
7	Discharge Cut-off Voltage (V)	40V
8	Max Continuous Charge Current (A)	100A	≥10℃
9	Max Continuous Discharge Current (A)	100A	≥10℃
10	Working Temperature Range (℃)	-20~60℃ (Discharge) 0~55℃ (Charge)
11	Storage Temperature Range	Less than 12 months: -10~35℃ Less than 3 months: -10~45℃ Less than 7 days: -20~65℃	60±25%R.H.at the shipment state
12	Communication Port	RS485, RS232,CAN
13	Cycle Life (Cycles)	6000 times @80% DOD
14	Design Life (Years)	10 years
15	Dimension (mm)	635400192mm
16	Weight (kgs)	48kgs
17	Max Stackable Number	16

This energy storage solution is precisely crafted to optimize your solar system performance, featuring a robust 48V / 51.2V and 100AH interface, making it the ideal choice for sustainability-driven homeowners. Elevate your energy storage capabilities with our Stackable Home Energy Storage Battery and experience the perfect union of reliability, scalability, and style in your home energy system.
