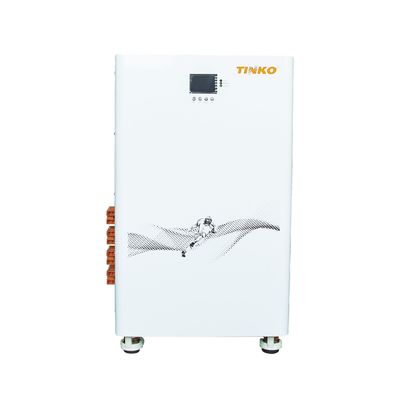

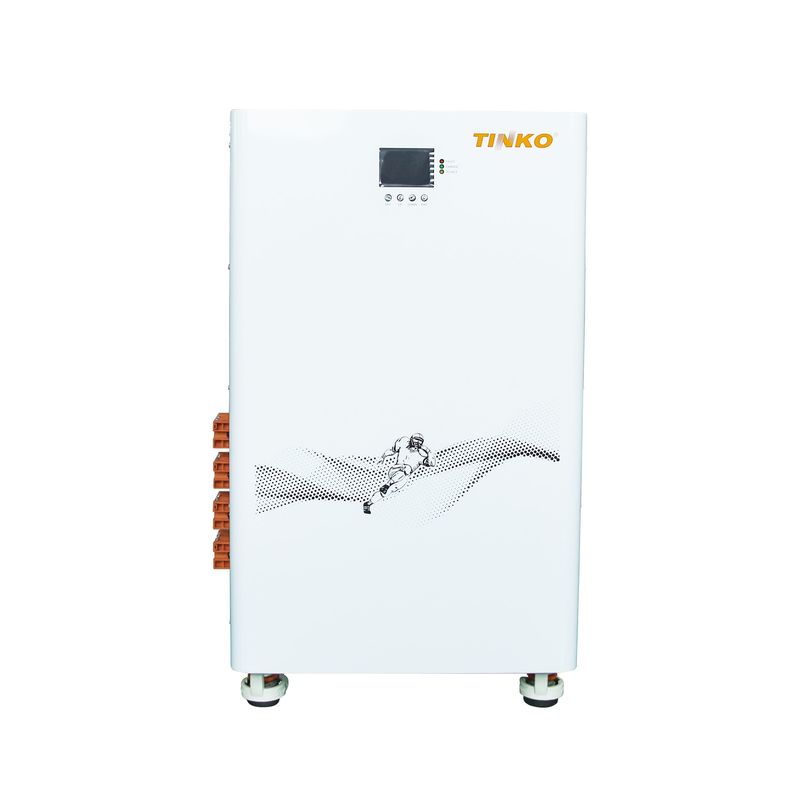

10kWh LiFePO4 Home Battery 48V 206AH with Inverter

Name

10kWh LiFePO4 Home Battery 48V 206AH with Inverter

Brand Name: TINKO/OEM
Model Number: KTLS-48200
MOQ: 1PC
Price: Negotiable
Supply Ability: 100pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE/ROHS/MSDS/UN38.3
Document:
Product Brochure PDF
Battery Type:
Lifepo4
Voltage:
48V
Capacity:
206AH
Weight:
120kg
Size:
936*575*376mm
Usage:
Residential & Business
Warranty:
10 Years
Original:
Dongguan, China
Packaging Details:
1pc/parer carton
Supply Ability:
100pcs/day
Highlight:

KTLS-48200 Lifepo4 Storage Battery

,

51.2V 48v Lifepo4 Powerwall

,

wall mounted inverter battery

Product Description
51.2V 10kWh LiFePO4 Battery 206AH With Inverter 48V 206AH
Product Overview
Our 51.2V 10kWh LiFePO4 battery with integrated inverter offers superior performance for residential and business energy storage applications. Featuring 206AH capacity and built with A-grade LiFePO4 cells, this solution provides reliable power during outages and optimal solar energy storage.
Key Specifications
Attribute Value
Battery Type LiFePO4
Voltage 48V
Capacity 206AH
Weight 120kg
Size 936×575×376mm
Usage Residential & Business
Warranty 10 years
Origin Dongguan, China
Product Advantages
LiFePO4 batteries offer significant advantages over traditional lead-acid or other lithium-ion batteries for energy storage applications. Key benefits include:
  • Enhanced safety features compared to other lithium-ion technologies
  • Extended cycle life of thousands of charge/discharge cycles
  • Superior temperature tolerance for reliable operation in various climates
  • Minimal self-discharge rate for long-term energy retention
  • Higher energy density for more compact, efficient power storage
Key Features
  • Integrated Wheels: Easy transportation for flexible placement in your home or business
  • High Capacity: 10kWh energy storage for reliable power during outages or daily use
  • Advanced Safety: Smart battery management system with comprehensive protection against over-voltage, over-current, and short circuits
  • Wide Compatibility: Supports multiple inverters and communication protocols for seamless system integration
  • Long Service Life: Engineered for thousands of cycles with minimal capacity degradation
Battery Technical Parameters
No. Item General Parameter Remark
1 Combination method 16S1P
2 Rated Capacity Typical: 206Ah
Minimum: 200Ah		 Standard discharge after Standard charge (for whole battery pack)
3 Factory Voltage 51V-53V (40-60%) Operation Voltage
4 Voltage at end of Discharge 40V Discharge Cut-off Voltage
5 Charging Voltage 56-58.4V
6 Internal Impedance ≤40mΩ Measured at AC 1KHZ after 50% charge
7 Standard charge Constant Current 40A
Constant Voltage (see No.5)
0.02CA cut-off		 Charge time: Approx 5.0h
Limiting current: 210A
8 Standard discharge Constant current: 40A
End-off voltage 40-44V
9 Maximum Continuous Charge Current 210A ≥10ºC
10 Operation Temperature Range Charge: 0~55℃
Discharge: -20~60℃		 60±25%R.H. Bare Cell
11 Storage Temperature Range Less than 12 months: -10~35℃
Less than 3 months: -10~45℃
Less than 7 day: -20~65℃		 60±25%R.H. at shipment state
12 Dimensions 936×528×376mm Include Bracket
13 Weight Approx: 130kg
Inverter Parameters (Built-in SPI-10K-SP)
MODEL SPI-8K-SP SPI-10K-SP CAN BE SET
INVERTER OUTPUT
Rated Output Power 8,000W 10,000W
Max. Peak Power 12,000W 15,000W
Rated Output Voltage 230Vac (Single phase) Y
Load Capacity of Motors 5HP 6HP
Rated AC Frequency 50/60Hz Y
Waveform Pure Sine Wave
Switch Time 10ms (typical)
Parallel capacity 1 ~ 6 units
BATTERY
Battery Type Li-ion / Lead-Acid / User Defined Y
Rated Battery Voltage 48Vdc
Voltage Range 40-60Vdc Y
Max. MPPT Charging Current 180A 200A Y
Max. Mains/Generator Charging Current 100A 120A Y
Max. Hybrid Charging Current 180A 200A Y
PV INPUT
Num. of MPP Trackers 2
Max. PV array power 5500W+5500W
Max. input current 22A+22A
Max. Voltage of Open Circuit 500Vdc+500Vdc
MPPT Voltage Range 125-425Vdc
