| Brand Name: | TINKO/OEM |
| Model Number: | KTLS-48200 |
| MOQ: | 1PC |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

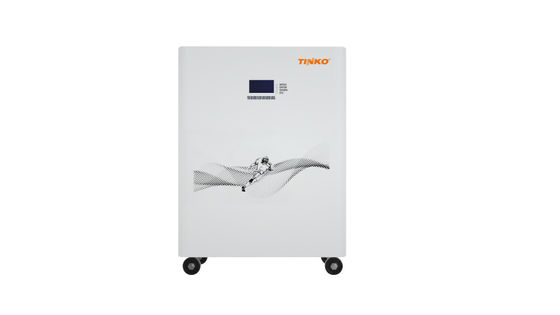

10kwh Lifepo4 Battery 48V 206AH For Energy Storage With Wheel
Product Description
Our storage battery is made for A level lifepo4 battery cell which is more stable. They provides a reliable power source during outages, ensuring essential systems remain operational. Also we have different capacity for you to choose according to your power use, and make the best plan which suit every house best. Especially for the ine who lives in remote locations where grid access is limited.
Product Parameters
|
Battery Pack
|
No.
|
Item
|
General Parameter
|
Remark
|
|
| 1 |
Combination method
|
16S1P | |||
|
2 |
Rated Capacity
|
Typical
|
206Ah |
Standard discharge after Standard charge(for the whole battery pack)
|
|
|
Minimum
|
200Ah | ||||
| 3 |
Factory Voltage
|
51V-53V(40-60%) |
Operation Voltage
|
||
|
4 |
Voltage at end of Discharge
|
40V |
Discharge Cut-off Voltage |
||
| 5 |
Charging Voltage
|
56-58.4V |
|||
|
6 |
Internal Impedance
|
≤40mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
Should use those battery which finished within 1week after shipment and cycles less than 5times to do the measurement |
||
|
7 |
Standard charge
|
Constant Current 40A Constant Voltage see No.5 0.02CA cut-off |
Charge time : Approx 5 . 0 h ( |
||
|
Limiting current
|
210A | ||||
|
8 |
Standard discharge
|
Constant current:40A end voltage see NO.4 |
|||
|
9 |
Maximum Continuous Charge Current
|
210A |
≥10ºC |
||
|
10 |
Operation Temperature Range |
Charge : 0~55℃ |
60±25%R.H. Bare Cell |
||
| Discharge : -20~60℃ | |||||
|
11 |
Storage Temperature Range
|
Less than 12 months : -10~35℃
|
60±25%R.H.at the shipment state
|
||
|
Less than 3 months: -10~45℃ |
|||||
|
Less than 7 day : -20~65℃ |
|||||
| 12 |
Dimensions
|
568*245*907mm | Include Bracket | ||
| 13 |
Weight
|
Approx :101kg | |||
