| Brand Name: | TINKO/OEM |
| Model Number: | KTQG - 12030 |
| MOQ: | 100PC |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

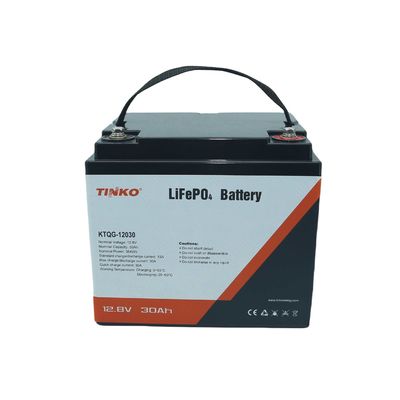

12V/24V Battery for High-Efficiency Solar Energy Storage and Electric Vehicles
Product Description
Lithium iron phosphate (LiFePO4) batteries, also known as LFP batteries, are a type of lithium-ion battery that have gained popularity in recent years due to their numerous advantages over traditional lead-acid batteries. One of the main fetures of lifpo4 battery is their high energy density, it can store more energy than lead acid battery in same size. Another feture of lifepo4 battery is thery are more environmental friendly than other batteries as they won't release toxic chemicals if you broken them down. What most important is that they are more saftey, unlike traditional lithium-ion batteries, which use cobalt or lithium cobalt oxide as a cathode material, LiFePO4 batteries use iron as a cathode material, so they are much less chance to thermal runaway, which is a condition where a battery overheats and catches fire.
Product Parameters
|
NO
|
Projects
|
Specification
|
Remark
|
|
Cell unit parameter
|
|||
| 1 |
Battery types and materials
|
LiFePO4 | |
| 2 |
Rated voltage/capacity
|
3.2V / 30Ah | |
| 3 |
Single battery voltage range
|
2.5V～3.65V | |
| 4 |
Single battery weight
|
0.141Kg | |
| 5 |
The battery internal resistance
|
≤ 0.4mΩ | |
| 6 |
Battery size
|
32.5*72.5mm | |
|
Battery parameter
|
|||
| 1 |
Rated voltage
|
12.8V | |
| 2 |
Rated capacity
|
30Ah | |
| 3 |
Battery pack voltage range
|
10～14.6V | |
| 4 |
Total Power
|
384Wh | |
| 5 |
Combination
|
4S5P | |
| 6 |
Insulation resistance test value
|
≥1.2MΩ | |
| 7 |
Operating temperature
|
Charging 0 ~ 55℃； Discharging -20 ~ 60℃ |
|
| 8 |
Standard charging current
|
0.5C | |
| 9 |
Quick charging current
|
1C | |
| 10 |
Standard discharge current
|
0.5C | |
| 11 |
Maximum continuous discharge current
|
1C | |
| 12 |
Gross weight
|
Around 4.35KG | |
| 13 |
Ambient relative humidity
|
20-85%RH | |
| 14 |
Battery size
|
198*166*170 mm | |
