| Brand Name: | TINKO/OEM |
| Model Number: | KTQG - 12050 |
| MOQ: | 100PC |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

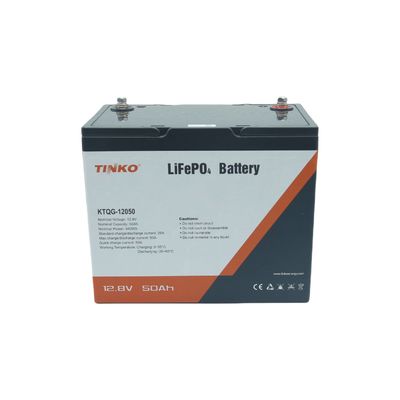

High-Efficiency 12V/24V Lifepo4 Battery for Solar and Electric Transportation Power Supply
Product Description
With the progress of times and the improvements technology, lifepo4 batteries have become increasingly popular in the marine industry. More and more clients choose to use the lifepo4 battery to replace the lead acid kind. As the LiFePO4 batteries offer many advantages over traditional lead-acid batteries, including high energy density, long lifespan, high safety, low cost of ownership, low self-discharge rate and low environmental impact. These characteristics make them a popular choice for a wide range of applications, including electric vehicles, solar energy systems, and backup power systems.
Product Parameters
|
NO
|
Projects
|
Specification
|
Remark
|
|
Cell unit parameter
|
|||
| 1 |
Battery types and materials
|
LiFePO4 | |
| 2 |
Rated voltage/capacity
|
3.2V / 50Ah | |
| 3 |
Single battery voltage range
|
2.5V～3.65V | |
| 4 |
Single battery weight
|
1.15Kg | |
| 5 |
The battery internal resistance
|
≤ 0.4mΩ | |
| 6 |
Battery size
|
39*148*95mm | |
|
Battery parameter
|
|||
| 1 |
Rated voltage
|
12.8V | |
| 2 |
Rated capacity
|
50Ah | |
| 3 |
Battery pack voltage range
|
10～14.6V | |
| 4 |
Total Power
|
640Wh | |
| 5 |
Combination
|
4S1P | |
| 6 |
Insulation resistance test value
|
≥1.2MΩ | |
| 7 |
Operating temperature
|
Charging 0 ~ 55℃； Discharging -20 ~ 60℃ |
|
| 8 |
Standard charging current
|
0.5C | |
| 9 |
Quick charging current
|
1C | |
| 10 |
Standard discharge current
|
0.5C | |
| 11 |
Maximum continuous discharge current
|
1C | |
| 12 |
Gross weight
|
Around 6.9KG | |
| 13 |
Ambient relative humidity
|
20-85%RH | |
| 14 |
Battery size
|
260*168*212 mm | |
