| Brand Name: | TINKO/OEM |
| Model Number: | KTLS-51300 |
| MOQ: | 1PC |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |
High Power Lifepo4 Battery 15.36kwh 48V 51.2V 300AH For Residencial Solar Energy Storage System
Product Description
Lithium iron phosphate (LiFePO4 or LFP) battery have become more and more popular in the solar storage system due to their advantages over traditional lead-acid batteries and even over other lithium-ion batteries. It has a higher energy density, and it also has excellent safety performance. What the most important is that it's lifespan is 3 times longer than lead acid battery, can up to 6000 cycles. This make it much popular in daily and business use.
Our TINKO home storage battery system is an Inverter type Grid-tied system that is compatible with most solar panel systems. This means that it can be easily connected to your existing solar panel system, allowing you to store the excess energy generated during the day and use it at night or during power outages. We uses advanced technology and A grade lifepo4 battyery cell to ensure that it is efficient and reliable. It is designed to meet the needs of households that require a reliable source of backup power and it is especially useful for households that are located in areas that are prone to power outages.
Product Features
● Compatible with over 20 inverters
● A+ lifepo4 Cell Composition
● 10.55kWh high energy
● 99% Efficiency LiFePo4 16-Cell Pack with the voltage 51.2v
● Modular design gives highest flexibility
● Longer Lasting: 10-20 year Design Life
● Multiple communication interfaces: RS485, RS232,CAN
● Intelligent BMS system inside
Product Parameters
|
Battery Pack
|
No.
|
Item
|
General Parameter
|
Remark
|
|
| 1 |
Combination method
|
16S1P | |||
|
2 |
Rated Capacity
|
Typical
|
300Ah |
Standard discharge after Standard charge(for the whole battery pack) |
|
|
Minimum
|
300Ah | ||||
| 3 |
Norminal Voltage
|
51.2V |
Operation Voltage
|
||
|
4 |
Voltage at end of Discharge |
40V
|
Discharge Cut-off Voltage |
||
| 5 |
Charging Voltage Range
|
|
|||
|
6 |
Internal Impedance
|
≤40mΩ
|
Internal resistance measured at AC 1KHZ after 50% charge
Should use those battery which finished within 1week after shipment and cycles less than 5times to do the measurement |
||
|
7 |
Standard charge
|
Constant Current 150A |
|
||
|
Limiting current
|
1C | ||||
|
8 |
Standard discharge
|
|
|||
|
9 |
Maximum Continuous Charge Current
|
1C |
≥10ºC |
||
|
10 |
Operation Temperature Range |
Charge : 0~55℃ |
60±25%R.H. Bare Cell |
||
| Discharge : -30~60℃ | |||||
|
11 |
Storage Temperature Range
|
|
|
||
|
Less than 3 months: -10~45℃ |
|||||
|
Less than 7 day : -20~65℃ |
|||||
| 12 |
|
620*260*840mm | Include Bracket | ||
| 13 |
|
Approx :122kg | |||

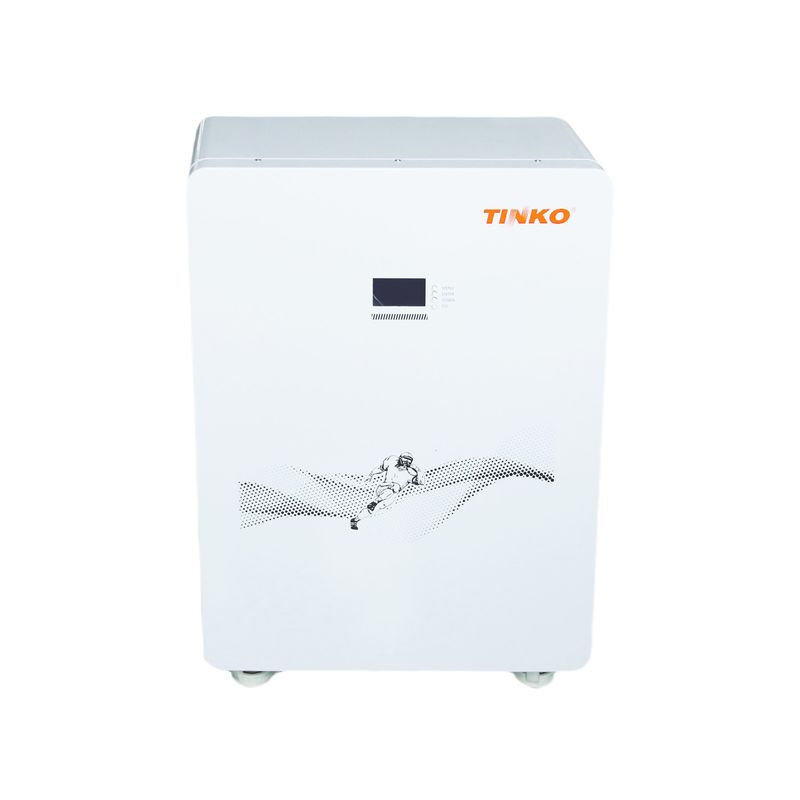

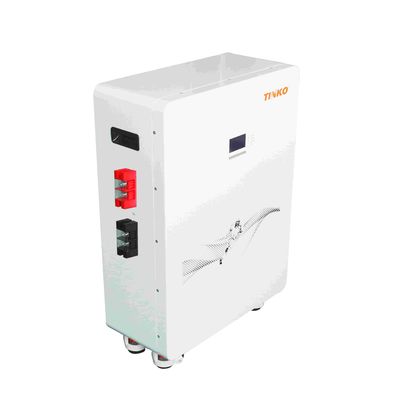

Product PIC
