| Brand Name: | TINKO/OEM |
| Model Number: | KTLS-48300 |
| MOQ: | 1PC |
| Price: | Negotiable |
| Supply Ability: | 100pcs/day |

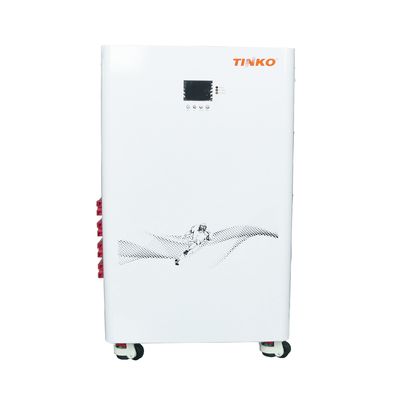

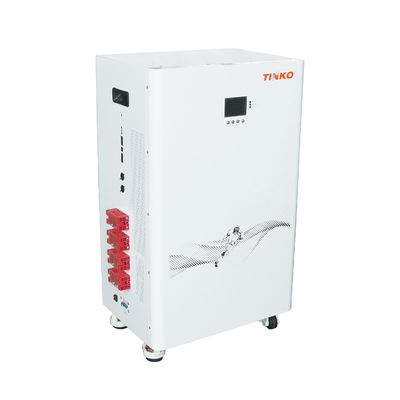

All in one Storage Battery 51.2V 15kwh Lifepo4 Battery 300AH With Inverter Inside
Product Description
LFP batteries have many advantages compares to the traditional lead-acid batteries or other lithium-ion batteries for marine applications. They are much safer, have a longer cycle life up to thansand of times, higher temperature tolerance, lower self-discharge rate, and higher energy density, which makes them more efficient, durable, and reliable. With all these advantages, lifepo4 battery became the best choice for the solar ennergy storage system.
TINKO solar storage battery uses A grade lifepo4 battery cell to make sure it's stability and long cycle life up to 6000 times. The 51.2V 300AH battery has 16pcs of lifepo4 battery inside. They provides a reliable power source during outages, ensuring essential systems remain operational. Also we have different capacity for you to choose according to your power use, and make the best plan which suit every house best.
Introducing the 15KWH Wheel-Mounted All-in-One Lithium Iron Phosphate Battery, designed to revolutionize your home energy storage solutions. This high-capacity, high-energy system is equipped with a robust 15kWh energy output, ensuring that all your daily household needs are met with ease.
With its integrated omnidirectional wheels, this innovative battery system offers unparalleled flexibility and mobility, allowing you to move it anywhere in your home with minimal effort.
Equipped with a state-of-the-art intelligent Battery Management System (BMS), it features a large display that provides real-time monitoring of the battery's health status, keeping you informed at all times. You can also connect to your mobile device for convenient remote access to the current state of your home energy storage, ensuring you’re always in control.
This all-in-one solution comes with a built-in inverter that can be tailored to your needs, allowing you to select either a 5KW or a 10KW inverter based on your household requirements. With a long cycle life and worry-free warranty, it guarantees reliable performance over time.
In summary, our 48V 300AH LiFePO4 battery for home use is the perfect solution for sustainable energy storage. Upgrade your home energy system with our 15KWH Wheel-Mounted Lithium Iron Phosphate Battery, and enjoy the peace of mind that comes with cutting-edge technology and dependable power!
Product Features
● Compatible with over 20 inverters
● Tier One, A+ Cell Composition
● Smart BMS system
● 99% High efficiency LiFePo4 16-Cell Pack with the voltage 51.2v
● Modular design gives highest flexibility
● Longer Lasting; 10-20 year Design Life
● Multiple communication interfaces: RS485, RS232,CAN
● All in one, easy to use
Battery Parameters
|
Battery Pack
|
No.
|
Item
|
General Parameter
|
Remark
|
|
| 1 |
Combination method
|
16S1P | |||
|
2 |
Rated Capacity
|
Typical
|
300Ah |
Standard discharge after Standard charge(for the whole battery pack) |
|
|
Minimum
|
300Ah | ||||
| 3 |
Nominal Voltage
|
48V |
|
||
|
4 |
Voltage at end of Discharge
|
44V |
Discharge Cut-off Voltage |
||
| 5 |
Charging Voltage
|
40-58V |
T≥0℃ | ||
|
6 |
Internal Impedance
|
≤40mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
Should use those battery which finished within 1week after shipment and cycles less than 5times to do the measurement |
||
|
7 |
Standard charge
|
Constant Current 150A Constant Voltage 58V 0.01CA cut-off |
15℃≤T<45℃ |
||
|
Limiting current
|
1C | ||||
|
8 |
Standard discharge
|
|
|||
|
9 |
Maximum Continuous Charge Current
|
1C |
≥10ºC |
||
|
10 |
Operation Temperature Range
|
Charge : 0~55℃ |
60±25%R.H. Bare Cell |
||
| Discharge : -30~60℃ | |||||
|
11 |
Storage Temperature Range
|
Less than 12 months :
|
|
||
|
Less than 3 months: -10~45℃ |
|||||
|
Less than 7 day : -20~65℃ |
|||||
| 12 |
|
580*395*920mm | Include Bracket | ||
| 13 |
|
Approx :160.5kg | |||
Interver Parameters (Built-in SPI-10K-SP)
| MODEL | SPI-8K-SP | SPI-10K-SP | CAN BE SET |
| INVERTER OUTPUT | |||
| Rated Output Power | 8,000W | 10,000W | |
| Max.Peak Power | 12,000W | 15,000W | |
| Rated Output Voltage | 230Vac(Single phase) | Y | |
| Load Capacity of Motors | 5HP | 6HP | |
| Rated AC Frequency | 50/60Hz | Y | |
| Waveform | Pure Sine Wave | ||
| Switch Time | 10ms(typical) | ||
| Parallel capacity | 1 ~ 6 units | ||
|
Overload |
After triggering the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102%<load<110%) ±10%: error and output shutdown (110% < load < 125%) ±10%: error and output shutdown Load > 125% ±10%: error reported and output switched off after 5s. |
||
| BATTERY | |||
| Battery Type | Li-ion / Lead-Acid / User Defined | Y | |
| Rated Battery Voltage | 48Vdc | ||
| Voltage Range | 40-60Vdc | Y | |
| Max.MPPT Charging Current | 180A | 200A | Y |
| Max.Mains/Generator Charging Current | 100A | 120A | Y |
| Max.Hybrid Charging Current | 180A | 200A | Y |
| PV INPUT | |||
| Num. of MPP Trackers | 2 | ||
| Max.PV array power | 5500W+5500W | ||
| Max.input current | 22A+22A | ||
| Max.Voltage of Open Circuit | 500Vdc+500Vdc | ||
| MPPT Voltage Range | 125-425Vdc | ||
| MAINS / GENERATOR INPUT | |||
| Input Voltage Range | 90-275Vac | ||
| Frequency Range | 50/60Hz | ||
| Bypass Overload Current | 63A | ||
| EFFICIENCY | |||
| MPPT Tracking Efficiency | 99.9% | ||
| Max. Battery Inverter Efficiency | 92% | ||
